High-Speed Die Cutting Solution for Hook & Loop Tapes and Velcro Straps.
This automatic punching machine is designed to cut Hook and Loop fasteners (Velcro), elastic bands, and webbing tapes into specific shapes. Unlike standard straight cutters, this machine uses a customized die (mold) to punch out circles (coins), rounded edges, ovals, or irregular shapes in one step.
It is widely used in the garment, footwear, medical, and cable management industries to produce ready-to-use velcro straps and coins.
Key Features
- Shape Customization: Can cut tapes into any shape (Round, Oval, Bullet-shape, Rectangle with rounded corners) by simply changing the die mold.
- Automatic Feeding: Equipped with a precise sensor and stepper motor for accurate feeding length.
- Clean Cuts: The high-pressure punching action ensures clean, sealed edges without fraying (especially effective for synthetic materials).
- High Productivity: Supports multi-lane feeding (cutting 2 or more rolls simultaneously) for narrower tapes, doubling your output.
- User-Friendly: Easy-to-operate control panel for setting speed, quantity, and batch counting.
Technical Specifications
| Model | HX-Series Velcro Punching Machine |
|---|---|
| Compatible Materials | Hook and Loop (Velcro), Elastic Tape, Webbing, Non-woven fabric |
| Max Feeding Width | 100mm / 160mm (Customizable) |
| Cutting Shapes | Circles, Rounded Straps, Tabs, Custom Shapes |
| Production Speed | 80 – 150 cuts/minute |
| Voltage | AC 220V / 110V, 50/60Hz |
| Machine Weight | Approx. 150kg – 300kg |
Applications
This machine is essential for manufacturing:

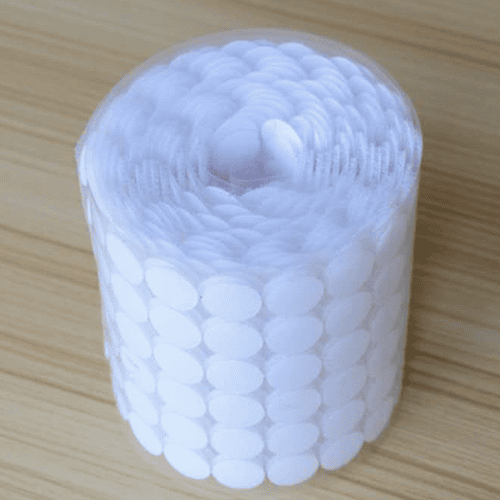

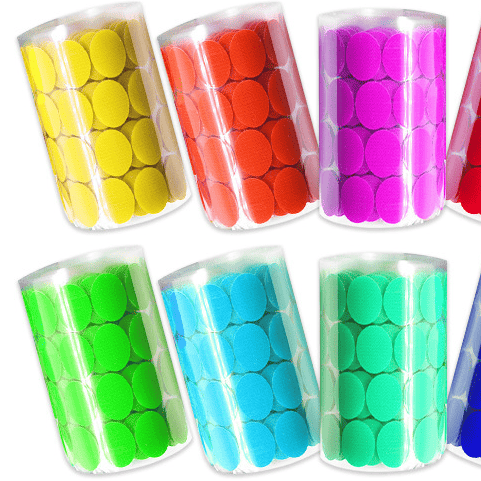

- Velcro Coins/Dots: Self-adhesive hook and loop dots for packaging and stationery.
- Cable Ties: Back-to-back velcro cable organizers with rounded ends.
- Medical Straps: Adjustable straps for braces and supports.
- Garment Accessories: Cuff tabs, shoe fasteners, and bag closures.
