Webbing Velcro Label Zigzag Wave Shape Cutting Machine HX-200DK-F2

Automatic zigzag and wave shape cutting for webbing, Velcro, labels and narrow textile tapes, with custom blade profiles for different finished-edge designs.

Application-specific cutting configuration
Material testing before order confirmation
OEM / non-standard customization support
Remote technical and after-sales support
Discuss Your Material on WhatsApp
Webbing Velcro Label Zigzag Wave Shape Cutting Machine HX-200DK-F2
Model
HX-200DK-F2
Cutting Method
Hot
Model
HX-200DK-F2
Cutting Length
1-9999mm
Cutting Width
1-95mm
Thickness
0.01-4mm(others can custom)
Engineering Overview

What Is This Machine Designed to Do?

Understand the machine logic, suitable materials, process capability and application scope before comparing configurations.

Material Matched Application Reviewed Configuration Confirmed
Before Configuration Review
✓ Material type
✓ Width & thickness
✓ Required cut size
✓ Target output

The HX-200DK-F2 is designed for manufacturers that need more than a standard straight cut. It automatically feeds and cuts webbing, hook & loop tape, woven labels, ribbon and similar narrow materials into repeated zigzag, wave or customized edge shapes.

Unlike a conventional cut-to-length machine, the finished shape is determined by the cutting blade. This makes the machine suitable for products where the cut edge itself is part of the design or assembly requirement.

Cutting length, quantity and operating parameters can be set according to the production requirement. For projects involving a new material or special edge profile, customers can send samples or drawings for cutting evaluation before confirming the machine configuration.

Why This Configuration

Match the Machine to the Production Requirement.

A suitable cutting machine should match the actual material, production workflow and required finished result — not just a catalog specification.

01

Material Fit

Review material type, width, thickness, structure and cutting behavior before confirming the machine configuration.

Material
02

Process Fit

Confirm that feeding, positioning, cutting and collection match the required production sequence and handling method.

Workflow
03

Output Fit

Evaluate required dimensions, cut quality and target output so the final setup matches the intended production result.

Result
Process Flow

How the Machine Works

A clear process view helps engineering and purchasing teams evaluate whether the machine fits their production flow.

01

Load Material

Install the roll, strip, sheet or workpiece according to the machine configuration.

02

Set Parameters

Set length, quantity, speed or processing parameters through the control system.

03

Automatic Processing

The feeding and cutting / punching sequence runs according to the programmed settings.

04

Collect & Inspect

Finished parts are collected and checked for size, shape and cutting quality.

Technical Specifications

Core Machine Parameters

Use these values for a quick engineering review. Final speed and configuration should be confirmed with the actual material and required finished result.

Model
HX-200DK-F2
Cutting Length
1-9999mm
Cutting Width
1-95mm
Material Thickness
0.01-4mm(others can custom)
Cutting / Blade Type
Hot
Technical reference image. Final configuration follows the confirmed application.
Confirm Before Ordering
Need a recommendation based on your width, thickness and target speed?
WhatsApp Us
Engineering Details

Built for Repeatable Shaped Cutting

For zigzag and wave cutting, the cutting blade and material-feeding system directly affect the finished shape. The machine configuration is therefore selected around the customer's actual material and required edge profile.

Detail 01

Cutting Unit / Blade Area

Core processing area for cutting, punching or die-cutting according to the machine type.

Detail 02

Automatic Feeding System

Supports stable material movement and repeatable positioning during continuous production.

Detail 03

Control & Parameter Setting

Operators can set length, quantity, speed and related process parameters from the control interface.

Customization Options

Customize the Cut Shape for Your Product

The key customization of this machine is not simply machine size—it is the finished cut profile. Tell us what material you use and what the finished end should look like, and we can evaluate the appropriate blade and machine configuration.

Typical Customization Requests
Cutting Method Working Width Feeding Sensors Voltage Rewinding
?
Not sure which option fits your production?

Send material photos, width, thickness and your target cutting result for configuration review.

WhatsApp About Customization
◇
Application
Matched
⚙
Engineering
Reviewed
✓
Configuration
Confirmed
Available Customization
01

Cutting Method

Hot / cold / blade / punching / die-cutting according to application.

02

Working Width & Length

Standard range or project-specific dimension review.

03

Feeding System

Standard feeding, unwinding and tension-control options.

04

Punching / Tooling

Custom dies, hole patterns, cutting shapes and fixtures.

05

Control Logic

PLC / servo / sensor-linked process sequence customization.

06

Electrical Standard

110V / 220V / 380V and 50/60Hz by destination.

07

OEM Branding

Machine label, logo and project-specific identification.

08

Collection / Rewinding

Collection, rewinding or downstream handling options.

Testing Before Shipment

Confirm Your Shape Before Shipment

For custom-shaped cutting projects, we recommend testing with the customer's actual material whenever possible. This confirms not only whether the machine can cut the material, but whether the finished zigzag or wave profile meets the application requirement.

01

Customer Sample

Receive material samples, drawings or detailed process requirements.

02

Machine Setup

Adjust feeding, cutting, tooling and control parameters for the application.

03

Material Test

Run the actual material and inspect cutting quality, dimensions and stability.

04

Video Confirmation

Share running videos and finished samples for buyer confirmation when required.

05

Packing & Shipment

Complete final inspection, secure packing and shipment preparation.

✓ Cutting Quality
✓ Size & Accuracy
✓ Continuous Running
✓ Electrical / Safety Check
Material Capability

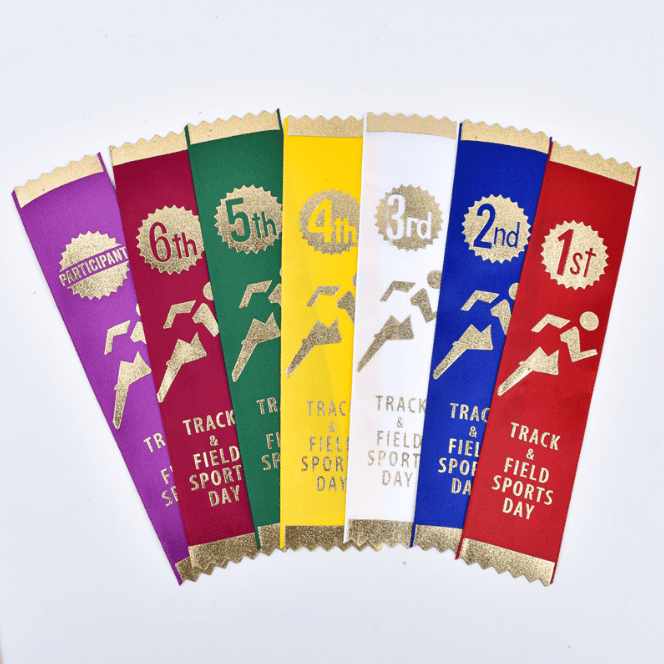

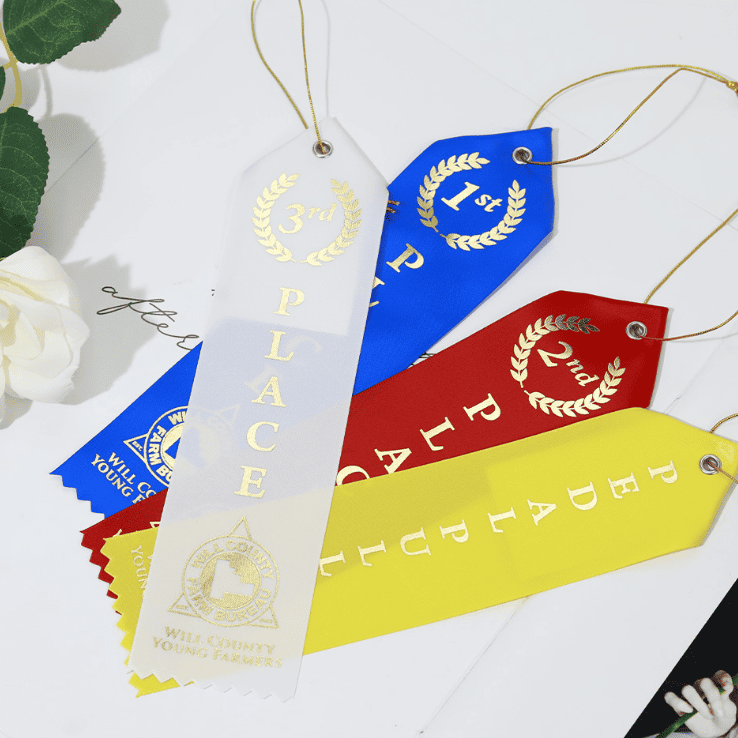

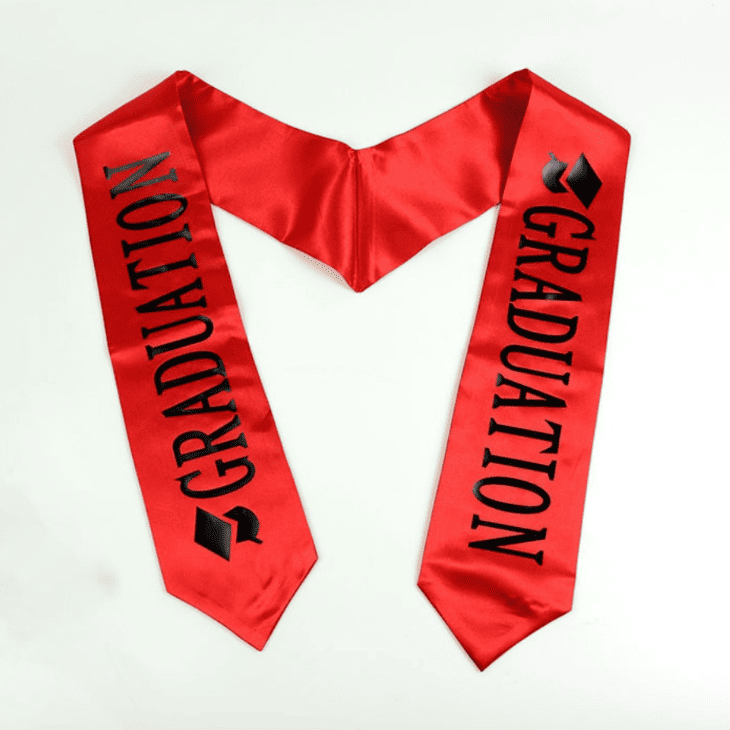

Compatible Materials & Cutting Samples

Review suitable materials and real cutting samples in one place. Final compatibility should be confirmed according to material thickness, structure and required cutting quality.

Not sure whether your material can be processed?

Send the material name, width, thickness and a photo or sample for application review.

WhatsApp About Your Material
Application Scenarios

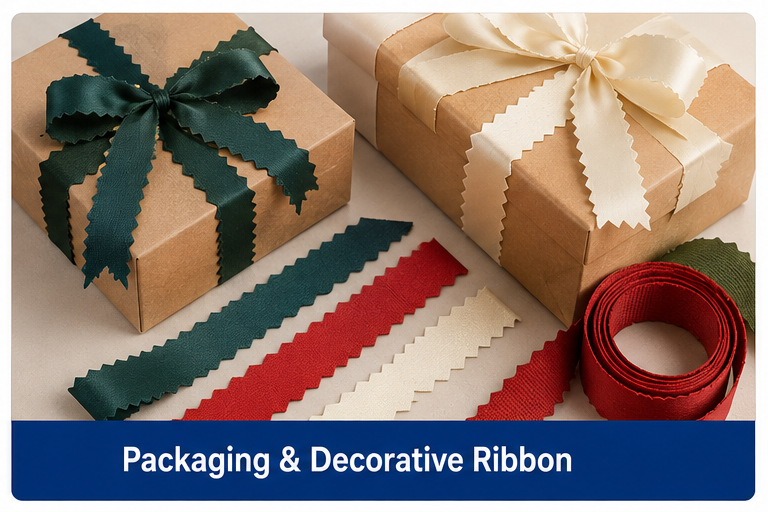

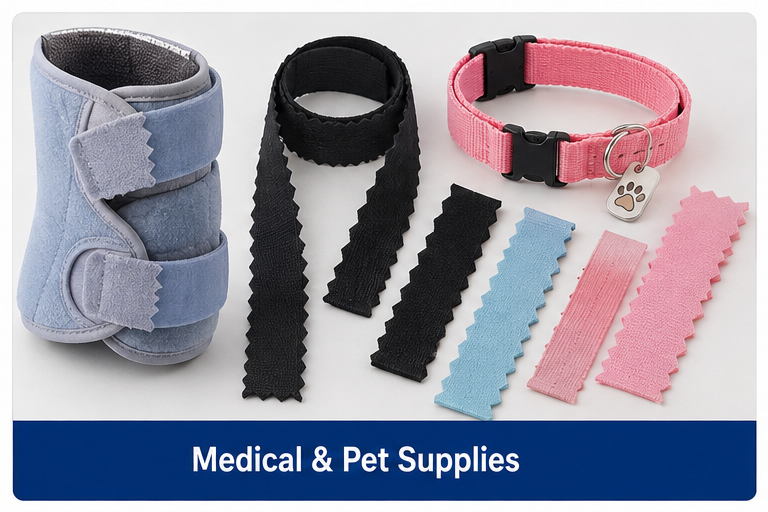

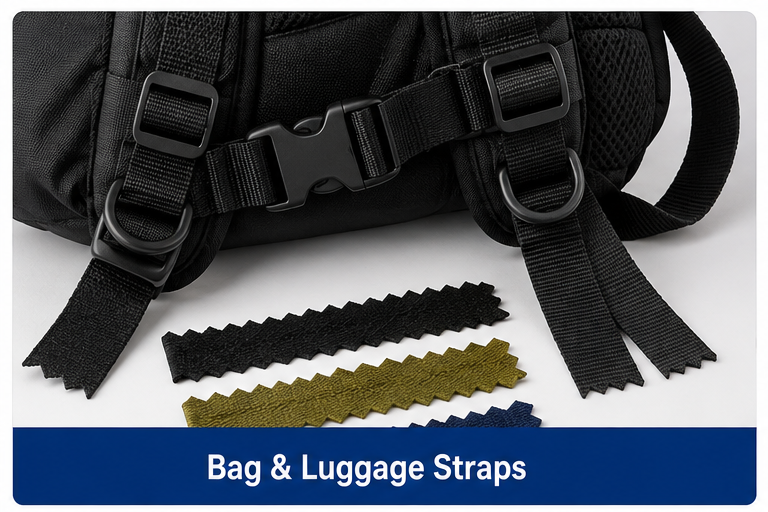

Where Shaped Webbing Cutting Is Used

This machine is intended for products where the cut edge needs a defined shape rather than a conventional straight end. Blade profiles can be matched to the required product design and material.

Manufacturing Partner

Why Industrial Buyers Work With CUTOPIX

Manufacturing resources, assembly, electrical integration and quality control — practical proof behind every machine project.

Factory

Manufacturing & Engineering Capability

CUTOPIX specializes in the development and manufacturing of automatic cutting and punching equipment for flexible materials. Our production capabilities cover machine assembly, electrical integration, customized tooling, testing and quality inspection. Each machine can be configured according to the customer's material, cutting size, production process and automation requirements.

Industry Presence

Global Exhibitions & Industry Experience

We participate in industry exhibitions to present our cutting solutions and communicate directly with customers from different markets. These face-to-face exchanges help us better understand real production requirements and continuously improve our machines for different materials, applications and industries.

Customer Feedback

Trusted by Customers Worldwide

Our machines are used by customers in different industries and markets around the world. Customer feedback, repeat orders and real production results help demonstrate the reliability of our equipment and service. We value long-term cooperation and continue to provide technical support after delivery.

FAQ

Questions Industrial Buyers Usually Ask

Practical answers about materials, cutting capability, configuration and purchasing this machine.

01 Can an automatic webbing cutting machine cut zigzag or wave-shaped ends?
Yes. With a shaped cutting blade, the machine can produce repeated zigzag, wave and other defined edge profiles instead of standard straight-cut ends.
02 What materials can a zigzag and wave shape cutting machine process?
Typical materials include nylon webbing, polyester webbing, hook & loop tape, woven labels, ribbon and other narrow textile materials. Material thickness and structure should be confirmed before selecting the cutting configuration.
03 Can the zigzag or wave cutting shape be customized?
Yes. The cutting profile can be customized according to the required tooth size, pitch, wave profile or finished-product design. A drawing, photo or physical sample is recommended for custom shapes.
04 Can this machine automatically cut Velcro into custom shapes and lengths?
Yes, suitable hook & loop materials can be automatically fed and cut to programmed lengths with the required shaped edge. For thick, laminated or special Velcro, sample testing is recommended.
05 Can one machine produce different zigzag, wave or special cutting patterns?
Different cutting profiles can be achieved by changing the corresponding cutting blade. Send us the different shapes you need so we can check whether they can be produced on the same machine configuration.
06 Does zigzag cutting prevent nylon or polyester webbing from fraying?
This depends on the material composition and cutting method. If edge sealing is required, tell us the exact webbing material and desired edge finish so we can evaluate the appropriate cutting solution.
07 Can you make a custom cutting blade from my drawing or finished sample?
Yes. For non-standard edge profiles, you can provide a dimensional drawing, reference photo or finished sample. We can evaluate the blade profile and machine configuration according to the required result.
08 Can you test my webbing, Velcro or ribbon before I order the machine?
Yes. For custom-shaped cutting applications, we recommend testing the actual material whenever possible. We can check feeding, cutting consistency and the finished edge, then provide a test video for confirmation.
Discuss Your Application

Tell Us What You Need to Cut

The fastest way to recommend a suitable machine is to understand your material and finished cutting requirement.

01Material name, width and thickness
02Required cutting length, shape or punching method
03Target output or production requirement
04Voltage and any custom automation requirement
Send Photos / Drawings on WhatsApp

For photos, drawings or sample details, you can also send them through WhatsApp after submitting the form.
