Ribbon Webbing Multi-Shape Cutting Machine HX-CHS10

Automatic multi-shape cutting for ribbon, webbing and narrow textile materials — produce round, oval, pointed and other custom end shapes with repeatable size and clean edges.

Application-specific cutting configuration
Material testing before order confirmation
OEM / non-standard customization support
Remote technical and after-sales support
Discuss Your Material on WhatsApp
Ribbon Webbing Multi-Shape Cutting Machine HX-CHS10
Model
HX-CHS10
Cutting Method
Hot
Model
HX-CHS10
Cutting Length
1-9999mm
Cutting Width
1-95mm
Thickness
0.01-4mm(others can custom)
Engineering Overview

What Is This Machine Designed to Do?

Understand the machine logic, suitable materials, process capability and application scope before comparing configurations.

Material Matched Application Reviewed Configuration Confirmed
Before Configuration Review
✓ Material type
✓ Width & thickness
✓ Required cut size
✓ Target output

The Ribbon Webbing Multi-Shape Cutting Machine is designed for manufacturers that need more than conventional straight cut-to-length processing.

By using dedicated cutting tooling, the machine can process ribbon, nylon webbing, polyester webbing, elastic tape and other narrow materials into different finished profiles. Depending on the product requirement, cutting shapes can be configured for round, oval, pointed, angled or other custom profiles.

Automatic feeding and programmable length control help maintain consistent dimensions during batch production. Instead of manually trimming each piece or using separate processes for different end profiles, manufacturers can configure the machine around the actual finished product.

For non-standard applications, send us your material, width, thickness, required length and a drawing or photo of the finished shape. We can evaluate the cutting method and tooling before quotation.

Why This Configuration

Match the Machine to the Production Requirement.

A suitable cutting machine should match the actual material, production workflow and required finished result — not just a catalog specification.

01

Material Fit

Review material type, width, thickness, structure and cutting behavior before confirming the machine configuration.

Material
02

Process Fit

Confirm that feeding, positioning, cutting and collection match the required production sequence and handling method.

Workflow
03

Output Fit

Evaluate required dimensions, cut quality and target output so the final setup matches the intended production result.

Result
Process Flow

How the Machine Works

A clear process view helps engineering and purchasing teams evaluate whether the machine fits their production flow.

01

Load Material

Install the roll, strip, sheet or workpiece according to the machine configuration.

02

Set Parameters

Set length, quantity, speed or processing parameters through the control system.

03

Automatic Processing

The feeding and cutting / punching sequence runs according to the programmed settings.

04

Collect & Inspect

Finished parts are collected and checked for size, shape and cutting quality.

Machine Video

See Multi-Shape Ribbon & Webbing Cutting in Action

Watch the machine automatically feed the material, position each cutting length and produce shaped ribbon or webbing pieces in sequence. The video helps buyers evaluate actual feeding stability, cutting movement, finished shape consistency and operating workflow before selecting a machine configuration.

Feeding & handling
Cutting action
Finished result
Operating sequence
Technical Specifications

Core Machine Parameters

Use these values for a quick engineering review. Final speed and configuration should be confirmed with the actual material and required finished result.

Model
HX-CHS10
Cutting Length
1-9999mm
Cutting Width
1-95mm
Material Thickness
0.01-4mm(others can custom)
Cutting / Blade Type
Hot
Suitable Materials
Satin Ribbon, Grosgrain Ribbon, Medal Ribbon, Polyester Tape, Nylon Ribbon, Gift Ribbon, Sash Ribbon, Woven Tape, Decorative Ribbon
Technical reference image. Final configuration follows the confirmed application.
Confirm Before Ordering
Need a recommendation based on your width, thickness and target speed?
WhatsApp Us

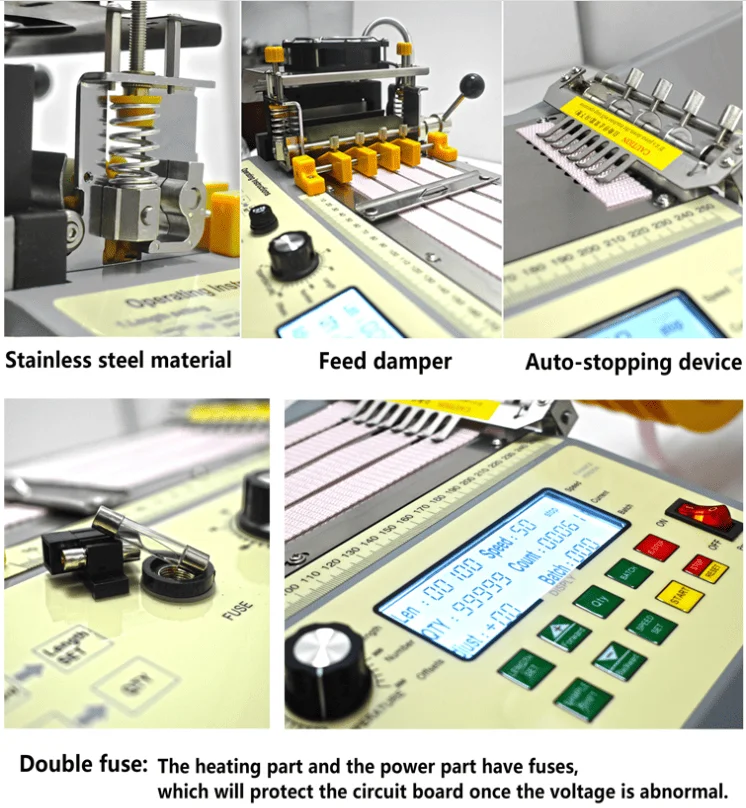

Engineering Details

How Multi-Shape Cutting Works

The machine combines automatic material feeding with shape-specific cutting tooling. The production setup is determined by the material dimensions, required finished length and target end profile.

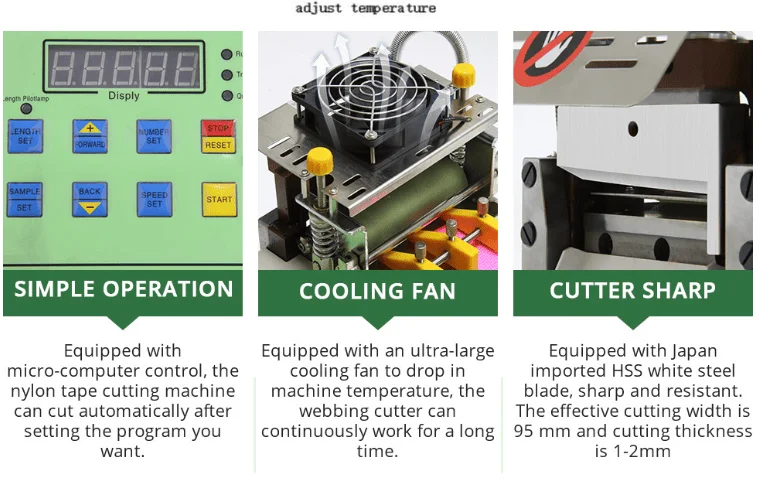

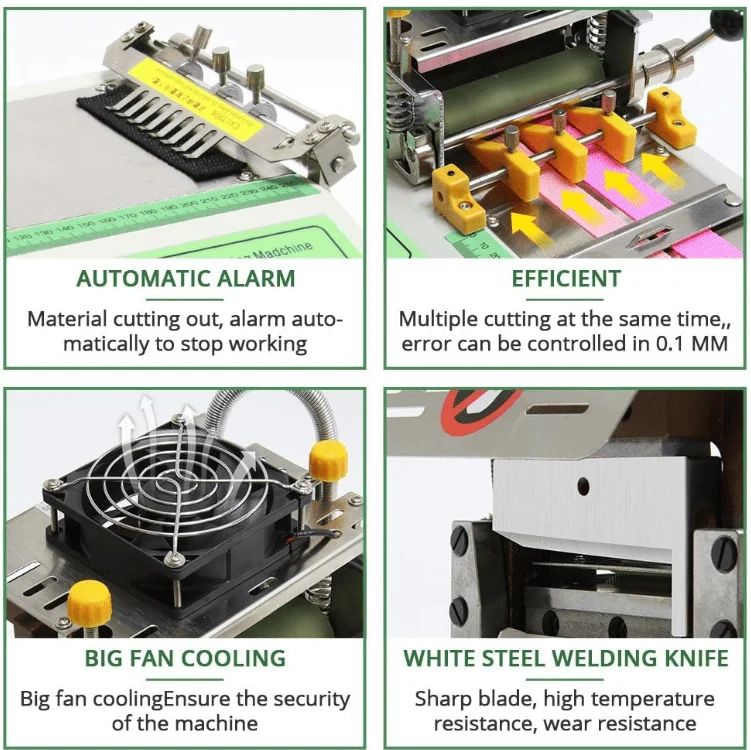

Detail 01

Cutting Unit / Blade Area

Core processing area for cutting, punching or die-cutting according to the machine type.

Detail 02

Automatic Feeding System

Supports stable material movement and repeatable positioning during continuous production.

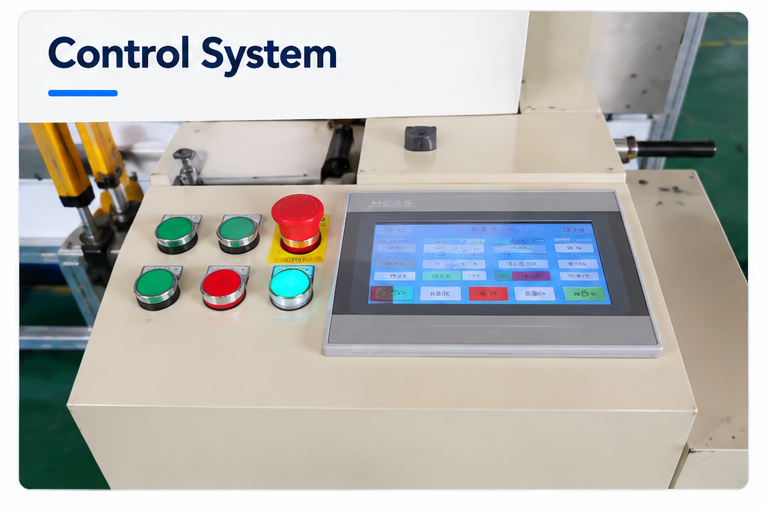

Detail 03

Control & Parameter Setting

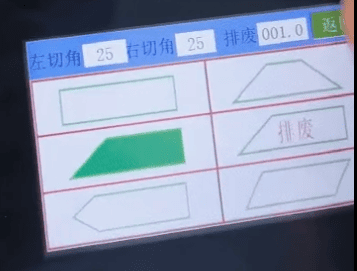

Operators can set length, quantity, speed and related process parameters from the control interface.

Customization Options

Configure the Machine Around Your Finished Shape

For multi-shape cutting, machine selection should start with the finished part rather than only the material width. Tooling, feeding and cutting configuration can be evaluated from your actual product drawing or sample.

Typical Customization Requests

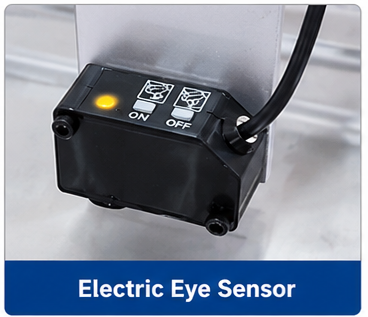

Cutting Method Working Width Feeding Sensors Voltage Rewinding
?
Not sure which option fits your production?

Send material photos, width, thickness and your target cutting result for configuration review.

WhatsApp About Customization
◇
Application
Matched
⚙
Engineering
Reviewed
✓
Configuration
Confirmed
Available Customization
01

Cutting Method

Hot / cold / blade / punching / die-cutting according to application.

02

Working Width & Length

Standard range or project-specific dimension review.

03

Feeding System

Standard feeding, unwinding and tension-control options.

04

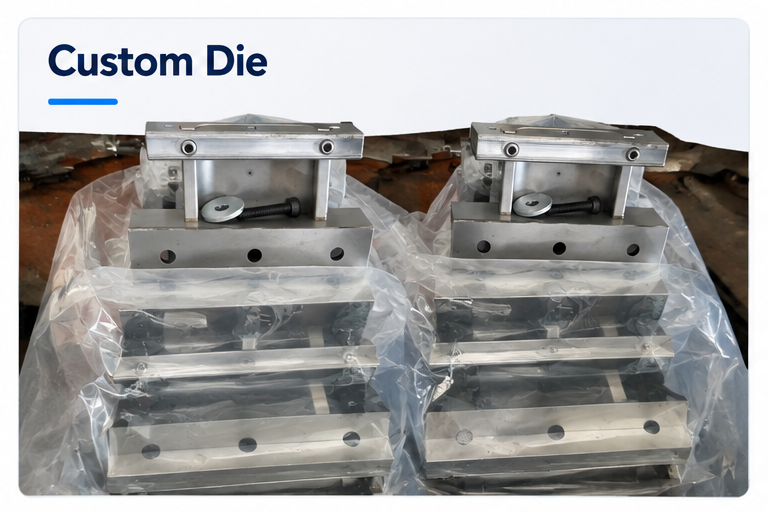

Punching / Tooling

Custom dies, hole patterns, cutting shapes and fixtures.

05

Control Logic

PLC / servo / sensor-linked process sequence customization.

06

Electrical Standard

110V / 220V / 380V and 50/60Hz by destination.

07

OEM Branding

Machine label, logo and project-specific identification.

08

Collection / Rewinding

Collection, rewinding or downstream handling options.

Testing Before Shipment

Test Your Custom Shape Before Shipment

For non-standard ribbon and webbing shapes, we recommend testing the actual customer material before final machine confirmation whenever possible. This allows both sides to verify whether the proposed tooling and machine configuration produce the required finished result.

01

Customer Sample

Receive material samples, drawings or detailed process requirements.

02

Machine Setup

Adjust feeding, cutting, tooling and control parameters for the application.

03

Material Test

Run the actual material and inspect cutting quality, dimensions and stability.

04

Video Confirmation

Share running videos and finished samples for buyer confirmation when required.

05

Packing & Shipment

Complete final inspection, secure packing and shipment preparation.

✓ Cutting Quality
✓ Size & Accuracy
✓ Continuous Running
✓ Electrical / Safety Check
Material Capability

Compatible Materials & Cutting Samples

Review suitable materials and real cutting samples in one place. Final compatibility should be confirmed according to material thickness, structure and required cutting quality.

Satin Ribbon Grosgrain Ribbon Medal Ribbon Polyester Tape Nylon Ribbon Gift Ribbon Sash Ribbon Woven Tape Decorative Ribbon
Not sure whether your material can be processed?

Send the material name, width, thickness and a photo or sample for application review.

WhatsApp About Your Material
Cutting Performance

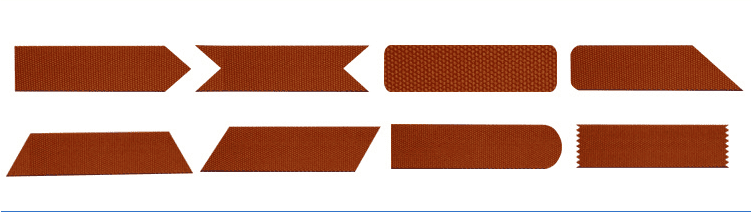

Multi-Shape Cutting Results for Ribbon & Webbing

Different products require different end profiles. This machine can be configured with shape-specific cutting tooling to produce repeatable finished pieces from continuous ribbon, webbing and narrow textile materials. Typical requirements include round ends, oval ends, pointed or angled profiles and other custom shapes. The achievable shape depends on the material structure, width, thickness and tooling design. For a custom profile, send us a drawing or finished sample so we can evaluate the required cutting tool before production.

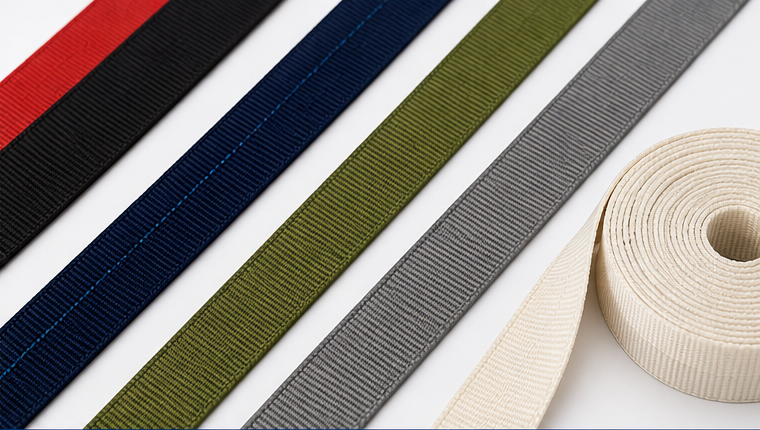

Ribbon Webbing Multi-Shape Cutting Machine HX-CHS10 input material before cutting
Step 01

Input Material

Satin Ribbon, Grosgrain Ribbon, Medal Ribbon, Polyester Tape, Nylon Ribbon, Gift Ribbon, Sash Ribbon, Woven Tape, Decorative Ribbon and similar flexible materials are prepared for stable feeding and cutting.

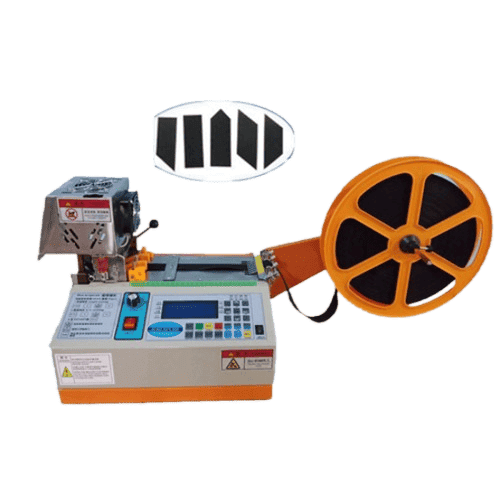

Ribbon Webbing Multi-Shape Cutting Machine HX-CHS10 automatic cutting process
Step 02

Automatic Processing

Material is automatically fed, positioned and cut according to the programmed length, quantity and process settings.

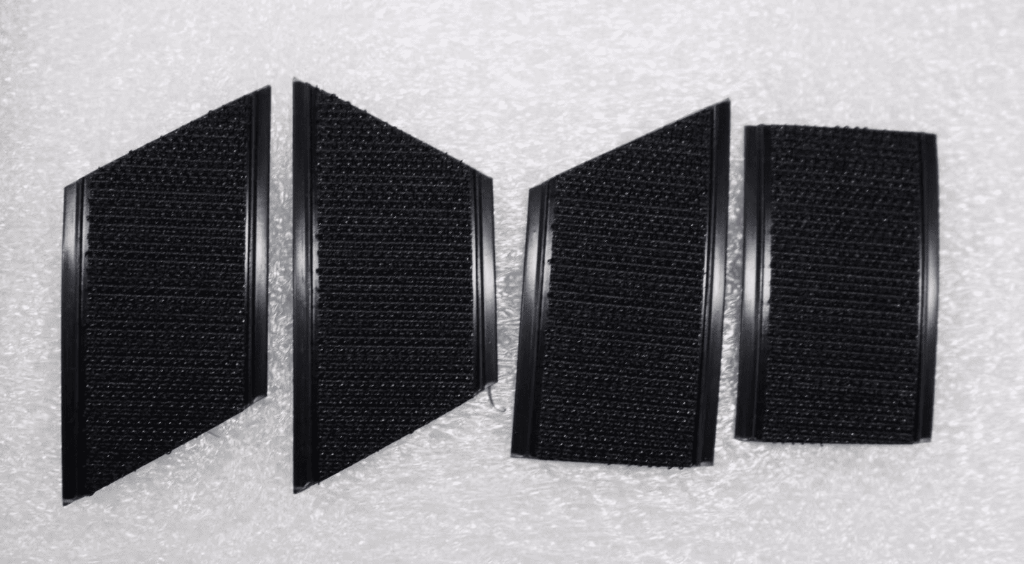

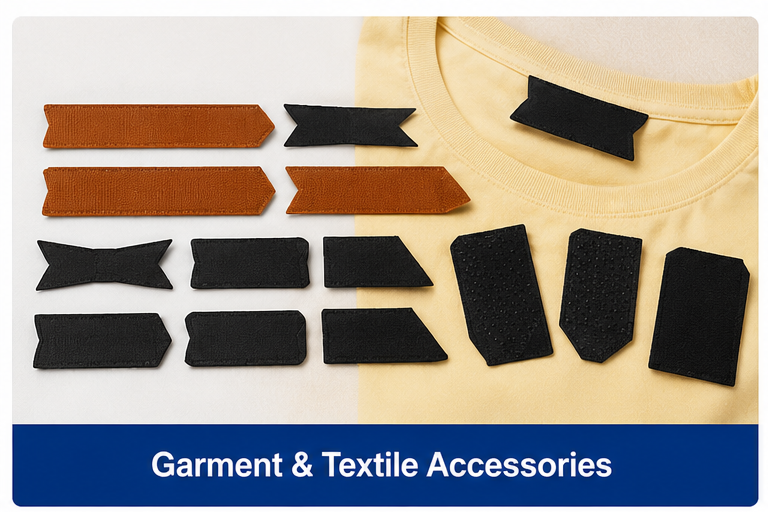

Ribbon Webbing Multi-Shape Cutting Machine HX-CHS10 finished cutting result
Step 03

Finished Result

Finished pieces are reviewed for dimensions, cutting quality, edge condition and production consistency.

Clean Cutting Result
Repeatable Dimensions
Automatic Feeding
Finished-Part Inspection
Application Scenarios

Where Multi-Shape Ribbon & Webbing Cutting Is Used

Multi-shape cutting is useful when the finished component requires a defined end profile rather than a standard straight cut. The machine can be configured around the material, finished shape and downstream sewing or assembly process.

Manufacturing Partner

Why Industrial Buyers Work With CUTOPIX

Manufacturing resources, assembly, electrical integration and quality control — practical proof behind every machine project.

Factory

Manufacturing & Engineering Capability

CUTOPIX specializes in the development and manufacturing of automatic cutting and punching equipment for flexible materials. Our production capabilities cover machine assembly, electrical integration, customized tooling, testing and quality inspection. Each machine can be configured according to the customer's material, cutting size, production process and automation requirements.

Industry Presence

Global Exhibitions & Industry Experience

We participate in industry exhibitions to present our cutting solutions and communicate directly with customers from different markets. These face-to-face exchanges help us better understand real production requirements and continuously improve our machines for different materials, applications and industries.

Customer Feedback

Trusted by Customers Worldwide

Our machines are used by customers in different industries and markets around the world. Customer feedback, repeat orders and real production results help demonstrate the reliability of our equipment and service. We value long-term cooperation and continue to provide technical support after delivery.

FAQ

Questions Industrial Buyers Usually Ask

Practical answers about materials, cutting capability, configuration and purchasing this machine.

01 What machine can cut ribbon and webbing into different shapes?
A multi-shape ribbon and webbing cutting machine uses dedicated cutting tooling to produce defined profiles such as round, oval, pointed, angled or other custom shapes while automatically controlling the cutting length.
02 Can a webbing cutting machine make round, oval or pointed ends?
Yes. These profiles can be produced when the machine is equipped with the appropriate cutting tooling. The exact solution depends on the material width, thickness and required finished dimensions.
03 Can I customize the cutting shape for my ribbon or webbing product?
Yes. For a non-standard shape, send us a dimensional drawing, clear photo or physical sample. We can evaluate whether dedicated tooling can be made for the required profile.
04 Do I need a different cutting tool for each webbing shape?
Usually, different finished profiles require corresponding tooling. If you need several shapes from one machine, send us all required drawings so we can evaluate the tooling-change arrangement.
05 Can the machine cut nylon and polyester webbing without fraying?
The appropriate cutting method depends on the material composition and required edge finish. If edge sealing is important, send us your actual webbing so the cutting result can be tested before configuration is confirmed.
06 Can the same machine process different ribbon and webbing widths?
Different widths may be possible within the configured machine range. Feeding guides and cutting tooling must match the actual material dimensions, so provide the minimum and maximum widths you plan to process.

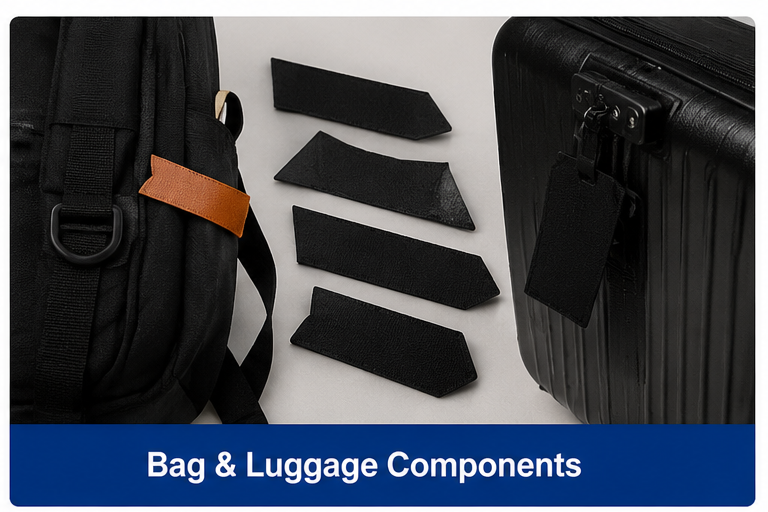

07 Is multi-shape cutting suitable for bag straps, pet collars and textile accessories?
Yes. Multi-shape cutting is useful for components that require a defined finished end before sewing or assembly, including bag straps, textile accessories, pet collar and harness components, and decorative ribbon products.
08 Can you make a custom cutting mold from my drawing or sample?
Yes. A dimensional drawing is preferred, but a finished sample or clear reference photo can also be used for initial evaluation. Final tooling dimensions should be confirmed before manufacturing.
09 Can you test my ribbon or webbing before I order the machine?
Yes. Sample testing is recommended for custom shapes, unusual materials or specific edge requirements. We can evaluate feeding, finished shape, cutting consistency and edge quality using your material.
10 What information should I send when requesting a multi-shape webbing cutting machine?
Please provide the material type, width, thickness, finished cutting length, required shape, production quantity or speed requirement, and a drawing or photo of the finished product. This allows us to recommend a more accurate machine and tooling configuration.
Discuss Your Application

Tell Us What You Need to Cut

The fastest way to recommend a suitable machine is to understand your material and finished cutting requirement.

01Material name, width and thickness
02Required cutting length, shape or punching method
03Target output or production requirement
04Voltage and any custom automation requirement
Send Photos / Drawings on WhatsApp

For photos, drawings or sample details, you can also send them through WhatsApp after submitting the form.
