Extra-Wide Roll-to-Sheet Cutting Solution for Paper and Plastic Films.

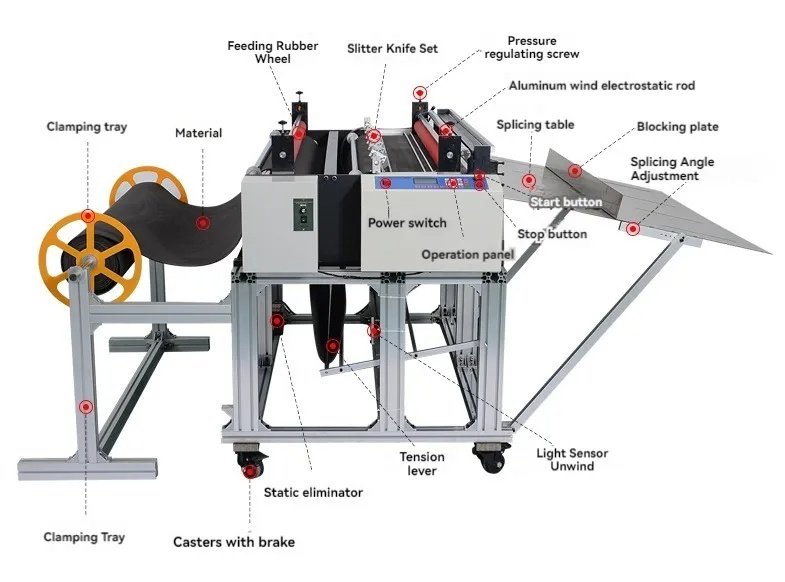

The HX-1500 Automatic Cutting Machine is a heavy-duty industrial cutter designed to handle jumbo rolls up to 1500mm (1.5 meters) wide. It specializes in converting large format materials like Kraft Paper, PVC Film, PET Sheets, and Release Paper into flat sheets.
Constructed with a reinforced steel frame and high-torque motors, this machine ensures stability when pulling heavy rolls, delivering precise and clean cuts for the packaging and printing industries.
Key Features
- 1500mm Cutting Capacity: Capable of processing wide master rolls directly, reducing the need for slitting beforehand.
- High Precision: Controlled by a micro-computer system, ensuring the cutting length accuracy is within ±0.5mm.
- Automatic Operation: Fully automated feeding, cutting, and counting. Operators can set the batch quantity and cutting speed easily.
- Flattening System: Equipped with multiple rubber rollers to flatten curled paper or film from the roll before cutting.
- Versatile Cutting: Suitable for a wide range of materials from thin plastic films to thick cardboard paper.
- Static Elimination (Optional): Can be fitted with static bars to prevent thin films from sticking to the blade.
Technical Specifications
| Model | HX-1500 (Wide Format) |
|---|---|
| Max Cutting Width | 1500 mm (1.5 Meters) |
| Compatible Materials | Kraft Paper, PVC/PET Film, Insulation Paper, Non-woven |
| Cutting Length | 10 – 9999 mm (Adjustable) |
| Cutting Speed | 30 – 80 cuts/minute (Depends on length) |
| Cutting Precision | ±0.5 mm |
| Voltage | AC 220V / 380V, 50/60Hz |
| Machine Weight | Approx. 400 – 450 KG |
Applications
Widely used for sheeting large rolls in:
- Packaging: Kraft wrapping paper, cardboard sheets, honeycomb paper.
- Plastic Industry: PVC soft glass, PET insulation film, rigid plastic sheets.
- Printing: Large format advertising banners, release paper, sticker sheets.
- Garment/Textile: Non-woven fabric rolls, pattern paper.
