Automatic Nonwoven Paper Roll to Sheet Cutting Machine HX-1000

Automatic roll-to-sheet cutting machine for nonwoven fabric, spunbond material and other soft flexible rolls. Designed for stable feeding and preset-length sheet cutting for packaging, medical, textile and industrial converting applications.

Application-specific cutting configuration
Material testing before order confirmation
OEM / non-standard customization support
Remote technical and after-sales support
Discuss Your Material on WhatsApp
Automatic Nonwoven Paper Roll to Sheet Cutting Machine HX-1000
Model
HX-1000
Cutting Method
Cold
Model
HX-1000
Cutting Length
1-9999mm
Cutting Width
1-1000mm
Thickness
0.01-4mm(others can custom)
Engineering Overview

What Is This Machine Designed to Do?

Understand the machine logic, suitable materials, process capability and application scope before comparing configurations.

Material Matched Application Reviewed Configuration Confirmed
Before Configuration Review
✓ Material type
✓ Width & thickness
✓ Required cut size
✓ Target output

The HX-1000 is an automatic roll-to-sheet cutting machine designed for nonwoven fabric, spunbond material and other soft flexible roll materials.

Unlike rigid paper or film, nonwoven materials can be soft, lightweight and easy to shift during feeding. The machine therefore needs to be configured according to the material width, thickness, basis weight, surface texture and roll condition to support stable feeding and repeatable cut lengths.

Operators can set the required cutting length and production quantity through the control system. The machine then automatically unwinds, feeds and cross-cuts the material into individual sheets for downstream packaging, medical, textile or industrial use.

For very soft, lightweight or unusual nonwoven materials, customers are encouraged to provide material specifications or physical samples so feeding behavior and finished cutting results can be evaluated before the final machine configuration is confirmed.

Why This Configuration

Match the Machine to the Production Requirement.

A suitable cutting machine should match the actual material, production workflow and required finished result — not just a catalog specification.

01

Material Fit

Review material type, width, thickness, structure and cutting behavior before confirming the machine configuration.

Material
02

Process Fit

Confirm that feeding, positioning, cutting and collection match the required production sequence and handling method.

Workflow
03

Output Fit

Evaluate required dimensions, cut quality and target output so the final setup matches the intended production result.

Result
Process Flow

How the Machine Works

A clear process view helps engineering and purchasing teams evaluate whether the machine fits their production flow.

01

Load Material

Install the roll, strip, sheet or workpiece according to the machine configuration.

02

Set Parameters

Set length, quantity, speed or processing parameters through the control system.

03

Automatic Processing

The feeding and cutting / punching sequence runs according to the programmed settings.

04

Collect & Inspect

Finished parts are collected and checked for size, shape and cutting quality.

Machine Video

See Nonwoven Roll-to-Sheet Cutting in Action

Watch how nonwoven roll material is loaded, automatically fed to the preset length and cross-cut into individual sheets. The video helps buyers review material feeding, cutting action, finished sheet size and continuous production before confirming the machine configuration.

Feeding & handling
Cutting action
Finished result
Operating sequence
Technical Specifications

Core Machine Parameters

Use these values for a quick engineering review. Final speed and configuration should be confirmed with the actual material and required finished result.

Model
HX-1000
Cutting Length
1-9999mm
Cutting Width
1-1000mm
Material Thickness
0.01-4mm(others can custom)
Cutting / Blade Type
Cold
Suitable Materials
Nonwoven Fabric, Spunlace Nonwoven, Kraft Paper, Release Paper, Filter Paper, Disposable Bed Sheet, Plastic Film, Gift Wrapping Paper, Tablecloth
Confirm Before Ordering
Need a recommendation based on your width, thickness and target speed?
WhatsApp Us
Customization Options

Configure the Cutter for Your Nonwoven Material

Nonwoven materials can differ significantly in width, thickness, basis weight, softness, surface friction and roll condition. The HX-1000 can therefore be configured according to the actual material and required finished sheet size. Send us your material specifications or physical samples so the feeding, guiding, unwinding and cutting configuration can be reviewed before production.

Typical Customization Requests
Cutting Method Working Width Feeding Sensors Voltage Rewinding
?
Not sure which option fits your production?

Send material photos, width, thickness and your target cutting result for configuration review.

WhatsApp About Customization
◇
Application
Matched
⚙
Engineering
Reviewed
✓
Configuration
Confirmed
Available Customization
01

Cutting Method

Hot / cold / blade / punching / die-cutting according to application.

02

Working Width & Length

Standard range or project-specific dimension review.

03

Feeding System

Standard feeding, unwinding and tension-control options.

04

Punching / Tooling

Custom dies, hole patterns, cutting shapes and fixtures.

05

Control Logic

PLC / servo / sensor-linked process sequence customization.

06

Electrical Standard

110V / 220V / 380V and 50/60Hz by destination.

07

OEM Branding

Machine label, logo and project-specific identification.

08

Collection / Rewinding

Collection, rewinding or downstream handling options.

Testing Before Shipment

Test Your Nonwoven Material Before Shipment

Soft and lightweight nonwoven materials can behave differently during unwinding and feeding. Sample testing helps confirm whether the material stays aligned, feeds smoothly and produces the required finished sheet length before the machine configuration is finalized.

01

Customer Sample

Receive material samples, drawings or detailed process requirements.

02

Machine Setup

Adjust feeding, cutting, tooling and control parameters for the application.

03

Material Test

Run the actual material and inspect cutting quality, dimensions and stability.

04

Video Confirmation

Share running videos and finished samples for buyer confirmation when required.

05

Packing & Shipment

Complete final inspection, secure packing and shipment preparation.

✓ Cutting Quality
✓ Size & Accuracy
✓ Continuous Running
✓ Electrical / Safety Check
Material Capability

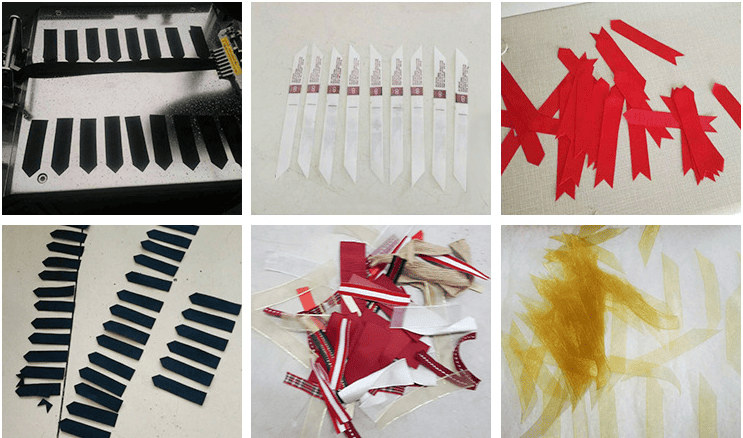

Compatible Materials & Cutting Samples

Review suitable materials and real cutting samples in one place. Final compatibility should be confirmed according to material thickness, structure and required cutting quality.

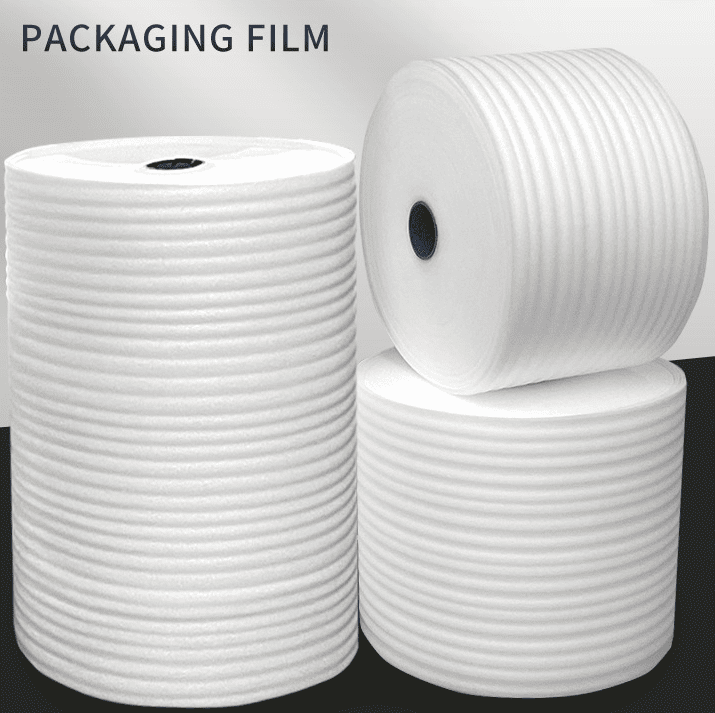

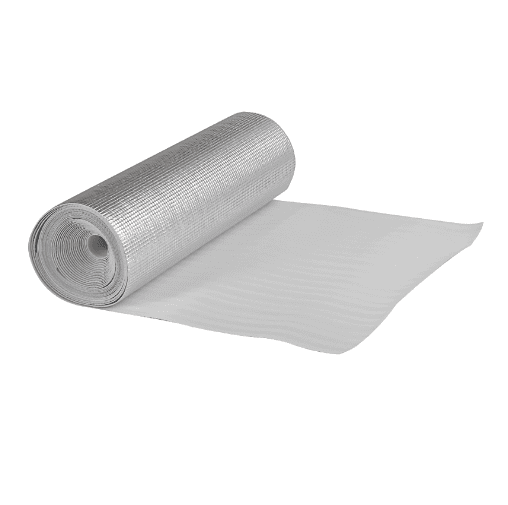

Nonwoven Fabric Spunlace Nonwoven Kraft Paper Release Paper Filter Paper Disposable Bed Sheet Plastic Film Gift Wrapping Paper Tablecloth
Not sure whether your material can be processed?

Send the material name, width, thickness and a photo or sample for application review.

WhatsApp About Your Material
Cutting Performance

Nonwoven Roll to Finished Sheets

The HX-1000 converts continuous nonwoven rolls into individual sheets of preset length. The process is designed to reduce repeated manual measuring while maintaining stable feeding and consistent sheet dimensions across production batches. Because nonwoven materials vary in softness, thickness and basis weight, the finished cutting result should be evaluated according to the actual material when dimensional consistency is important.

Automatic Nonwoven Paper Roll to Sheet Cutting Machine HX-1000 input material before cutting
Step 01

Input Material

Nonwoven Fabric, Spunlace Nonwoven, Kraft Paper, Release Paper, Filter Paper, Disposable Bed Sheet, Plastic Film, Gift Wrapping Paper, Tablecloth and similar flexible materials are prepared for stable feeding and cutting.

Automatic Nonwoven Paper Roll to Sheet Cutting Machine HX-1000 automatic cutting process
Step 02

Automatic Processing

Material is automatically fed, positioned and cut according to the programmed length, quantity and process settings.

Automatic Nonwoven Paper Roll to Sheet Cutting Machine HX-1000 finished cutting result
Step 03

Finished Result

Finished pieces are reviewed for dimensions, cutting quality, edge condition and production consistency.

Clean Cutting Result
Repeatable Dimensions
Automatic Feeding
Finished-Part Inspection
Manufacturing Partner

Why Industrial Buyers Work With CUTOPIX

Manufacturing resources, assembly, electrical integration and quality control — practical proof behind every machine project.

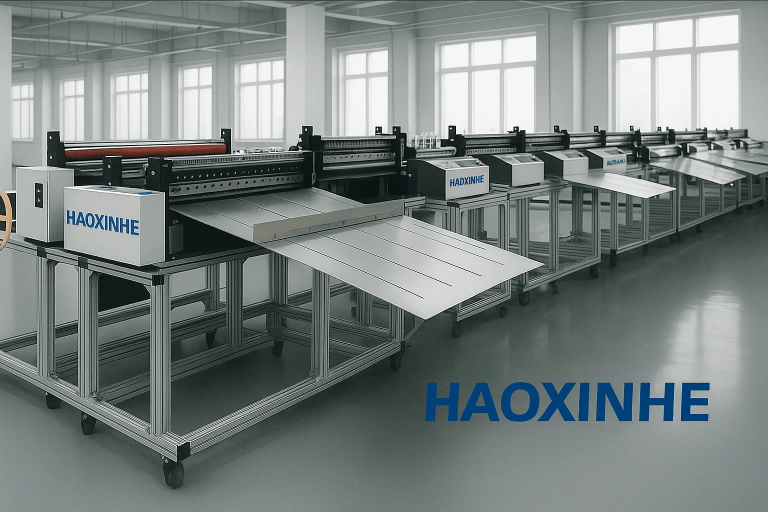

Factory

Manufacturing & Engineering Capability

CUTOPIX specializes in the development and manufacturing of automatic cutting and punching equipment for flexible materials. Our production capabilities cover machine assembly, electrical integration, customized tooling, testing and quality inspection. Each machine can be configured according to the customer's material, cutting size, production process and automation requirements.

Industry Presence

Global Exhibitions & Industry Experience

We participate in industry exhibitions to present our cutting solutions and communicate directly with customers from different markets. These face-to-face exchanges help us better understand real production requirements and continuously improve our machines for different materials, applications and industries.

Customer Feedback

Trusted by Customers Worldwide

Our machines are used by customers in different industries and markets around the world. Customer feedback, repeat orders and real production results help demonstrate the reliability of our equipment and service. We value long-term cooperation and continue to provide technical support after delivery.

FAQ

Questions Industrial Buyers Usually Ask

Practical answers about materials, cutting capability, configuration and purchasing this machine.

01 What is the best machine for cutting nonwoven fabric rolls into sheets?
An automatic nonwoven roll-to-sheet cutting machine is suitable when continuous nonwoven rolls need to be converted into fixed-length sheets. Machine selection should be based on roll width, material thickness, GSM, softness, roll diameter and required sheet length.
02 How do you automatically cut spunbond nonwoven fabric to a fixed length?
The roll is unwound and fed automatically to a preset length before cross cutting. The operator sets the required sheet length and quantity, and the machine repeats the feeding and cutting cycle automatically. For lightweight spunbond materials, feeding stability and alignment should be confirmed before production.
03 What GSM nonwoven fabric can an automatic cutting machine handle?
There is no single GSM range suitable for every nonwoven material because feeding behavior also depends on thickness, softness, surface friction and material structure. Provide the GSM together with a material sample or specification so the feeding and cutting configuration can be evaluated accurately.
04 How can nonwoven fabric be prevented from shifting during automatic cutting?
Stable nonwoven feeding depends on material guiding, feeding pressure, roll tension and alignment. Lightweight or soft materials may require a different feeding setup from paper or rigid film. Sample testing helps determine the appropriate configuration before production.
05 Can a nonwoven roll-to-sheet cutting machine cut different sheet lengths?
Yes. Different cutting lengths and production quantities can be set through the control system within the machine's applicable range. This is useful for manufacturers producing multiple nonwoven sheet sizes from roll material.
06 Can one machine cut different types of nonwoven fabric?
Potentially yes. Spunbond and other flexible nonwoven materials can be evaluated on the same machine, but suitability depends on width, thickness, GSM, softness and feeding characteristics. Buyers processing several materials should provide specifications or samples of each material before the configuration is confirmed.
07 Can a nonwoven cutting machine slit and cross-cut material in one process?

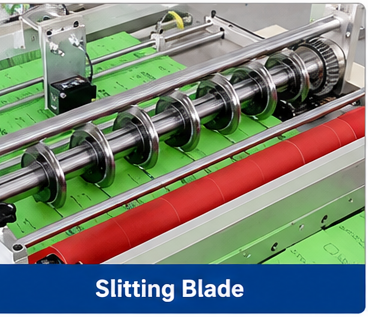

Optional longitudinal slitting can be evaluated when a wide nonwoven roll needs to be divided into narrower strips before cross cutting. The required configuration depends on the original roll width, finished strip widths, number of lanes and material characteristics.
08 Can printed nonwoven fabric be cut according to registration marks?
For printed nonwoven materials that require cutting at specific positions, an electronic eye registration system can be evaluated. Buyers should provide the print repeat length, registration mark details and required cutting position so the sensing configuration can be checked.
09 How do I choose a nonwoven roll-to-sheet cutting machine?
Start with the maximum roll width, material type, GSM, thickness, roll diameter, core size, required sheet length and target production output. For soft, lightweight or unusual nonwoven materials, actual sample testing is recommended before confirming the machine.
10 Can I test my nonwoven material before ordering a cutting machine?
Yes. Sample testing can be used to check feeding stability, alignment, cutting length and finished-sheet quality with the buyer's actual material. This is especially useful for lightweight, soft, textured or difficult-to-feed nonwoven rolls.
Discuss Your Application

Tell Us What You Need to Cut

The fastest way to recommend a suitable machine is to understand your material and finished cutting requirement.

01Material name, width and thickness
02Required cutting length, shape or punching method
03Target output or production requirement
04Voltage and any custom automation requirement
Send Photos / Drawings on WhatsApp

For photos, drawings or sample details, you can also send them through WhatsApp after submitting the form.
