2-in-1 Hot and Cold Cutting Machine for Labels, Ribbons, and Plastic Tubes.
The HX-95M is a versatile “All-in-One” automatic cutter designed for factories that process a variety of materials. It eliminates the need to buy separate machines for different jobs.
With a simple switch, you can operate it in Hot Cut Mode to seal the edges of synthetic ribbons and woven labels (preventing fraying), or Cold Cut Mode for cutting velcro, zippers, cotton tapes, and plastic tubes efficiently.
Key Features
- Dual Mode (Hot & Cold): Switch between hot sealing and cold cutting instantly. No need to change blades mechanically.
- Sealing Effect: In Hot mode, the blade heats up to 350-400°C to cut and seal Nylon/Polyester materials, ensuring a smooth, non-fraying edge.
- Versatile Cutting: In Cold mode, it perfectly handles non-fusible materials like Cotton, PVC tubes, heat shrink tubing, and paper.
- Automatic Compensation: Smart sensor system compensates for elasticity in materials like elastic bands to ensure accurate length.
- High Efficiency: Cuts 80-110 pieces per minute. It can also cut multiple narrow rolls side-by-side.
- Memory Function: Automatically remembers the last settings (Length, Speed, Qty) after power off.
Technical Specifications
| Model | HX-95M (Hot & Cold) |
|---|---|
| Max Cutting Width | 95 mm |
| Cutting Mode | Hot Knife / Cold Knife (Switchable) |
| Max Temperature | 350℃ – 400℃ (Adjustable) |
| Cutting Length | 1 – 9999 mm |
| Cutting Speed | 80 – 110 cuts/minute |
| Voltage | AC 220V / 110V, 50/60Hz |
| Weight | Approx. 26 KG |
Applications
This single machine covers the needs of garment, packaging, and electronic industries:

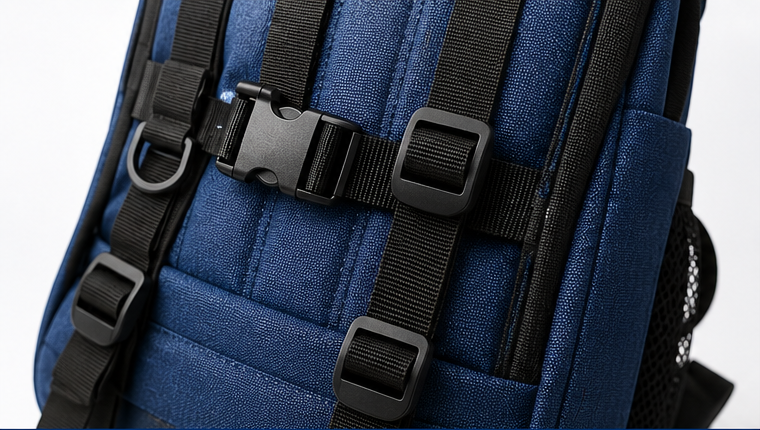

- Garment: Wash care labels, woven labels, bra straps, elastic bands, zippers.

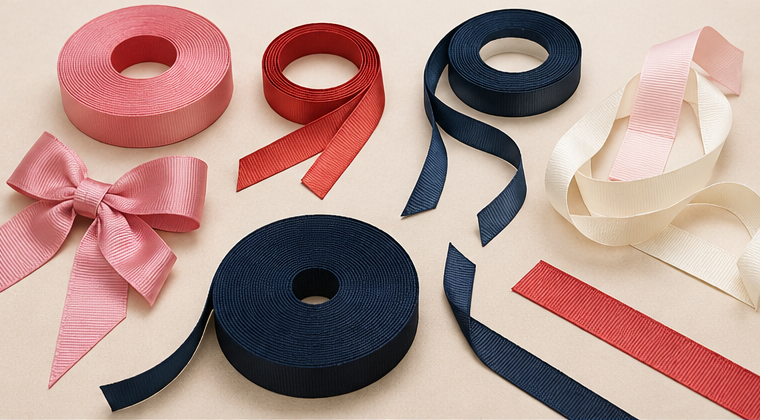

- Packaging: Satin ribbons, grosgrain ribbons, gift strings.
- Industrial: Velcro tape (Hook & Loop), PVC plastic tubes, heat shrink tubing.
