Automatic Thin Ribbon Tape Cutting Machine HX-CHS04

Compact Automatic Cutting Machine for Thin Ribbon, Satin Ribbon and Lightweight Narrow Tape

Application-specific cutting configuration
Material testing before order confirmation
OEM / non-standard customization support
Remote technical and after-sales support
Discuss Your Material on WhatsApp
Automatic Thin Ribbon Tape Cutting Machine HX-CHS04
Model
HX-CHS04
Cutting Method
Hot
Model
HX-CHS04
Cutting Length
1-9999mm
Cutting Width
1-95mm
Thickness
0.01-4mm(others can custom)
Engineering Overview

What Is This Machine Designed to Do?

Understand the machine logic, suitable materials, process capability and application scope before comparing configurations.

Material Matched Application Reviewed Configuration Confirmed
Before Configuration Review
✓ Material type
✓ Width & thickness
✓ Required cut size
✓ Target output

The HX-CHS04 is designed specifically for automatic cut-to-length processing of thin, lightweight and narrow roll materials such as satin ribbon, organza ribbon, thin textile tape, label tape and other compatible soft materials.

Compared with machines designed for thick webbing or heavy straps, the HX-CHS04 focuses on stable feeding and repetitive cutting of lightweight materials that can be difficult to handle manually.

Operators can set the required cutting length and production quantity for continuous batch processing. Depending on the material and required edge finish, the cutting configuration can be selected to achieve clean and consistent finished pieces.

For very soft, slippery or unusually thin materials, actual-material testing is recommended before confirming the final machine configuration.

Why This Configuration

Match the Machine to the Production Requirement.

A suitable cutting machine should match the actual material, production workflow and required finished result — not just a catalog specification.

01

Material Fit

Review material type, width, thickness, structure and cutting behavior before confirming the machine configuration.

Material
02

Process Fit

Confirm that feeding, positioning, cutting and collection match the required production sequence and handling method.

Workflow
03

Output Fit

Evaluate required dimensions, cut quality and target output so the final setup matches the intended production result.

Result
Process Flow

How the Machine Works

A clear process view helps engineering and purchasing teams evaluate whether the machine fits their production flow.

01

Load Material

Install the roll, strip, sheet or workpiece according to the machine configuration.

02

Set Parameters

Set length, quantity, speed or processing parameters through the control system.

03

Automatic Processing

The feeding and cutting / punching sequence runs according to the programmed settings.

04

Collect & Inspect

Finished parts are collected and checked for size, shape and cutting quality.

Machine Video

Watch Thin Ribbon Automatic Cut-to-Length Processing

See how lightweight ribbon is automatically fed and cut into preset lengths by the HX-CHS04. The video demonstrates material feeding, continuous cutting and finished ribbon collection, helping buyers evaluate the machine with thin and flexible roll materials.

Feeding & handling
Cutting action
Finished result
Operating sequence
Technical Specifications

Core Machine Parameters

Use these values for a quick engineering review. Final speed and configuration should be confirmed with the actual material and required finished result.

Model
HX-CHS04
Cutting Length
1-9999mm
Cutting Width
1-95mm
Material Thickness
0.01-4mm(others can custom)
Cutting / Blade Type
Hot
Suitable Materials
Satin Ribbon, Silk Ribbon, Grosgrain Ribbon, Gift Ribbon, Polyimide Tape, Kapton Tape, Thin Plastic Film, Lace Tape, Nickel Strip, Double-sided Tape
Confirm Before Ordering
Need a recommendation based on your width, thickness and target speed?
WhatsApp Us
Customization Options

Configure the HX-CHS04 for Your Thin Material

Satin ribbon, organza ribbon, thin textile tape, label tape and other compatible lightweight roll materials can be evaluated.

Typical Customization Requests
Cutting Method Working Width Feeding Sensors Voltage Rewinding
?
Not sure which option fits your production?

Send material photos, width, thickness and your target cutting result for configuration review.

WhatsApp About Customization
◇
Application
Matched
⚙
Engineering
Reviewed
✓
Configuration
Confirmed
Available Customization
01

Cutting Method

Hot / cold / blade / punching / die-cutting according to application.

02

Working Width & Length

Standard range or project-specific dimension review.

03

Feeding System

Standard feeding, unwinding and tension-control options.

04

Punching / Tooling

Custom dies, hole patterns, cutting shapes and fixtures.

05

Control Logic

PLC / servo / sensor-linked process sequence customization.

06

Electrical Standard

110V / 220V / 380V and 50/60Hz by destination.

07

OEM Branding

Machine label, logo and project-specific identification.

08

Collection / Rewinding

Collection, rewinding or downstream handling options.

Testing Before Shipment

From Customer Sample to Shipment Confirmation

For customized machinery, verification should happen before the machine leaves the factory. The process below helps reduce uncertainty for overseas buyers.

01

Customer Sample

Receive material samples, drawings or detailed process requirements.

02

Machine Setup

Adjust feeding, cutting, tooling and control parameters for the application.

03

Material Test

Run the actual material and inspect cutting quality, dimensions and stability.

04

Video Confirmation

Share running videos and finished samples for buyer confirmation when required.

05

Packing & Shipment

Complete final inspection, secure packing and shipment preparation.

✓ Cutting Quality
✓ Size & Accuracy
✓ Continuous Running
✓ Electrical / Safety Check
Material Capability

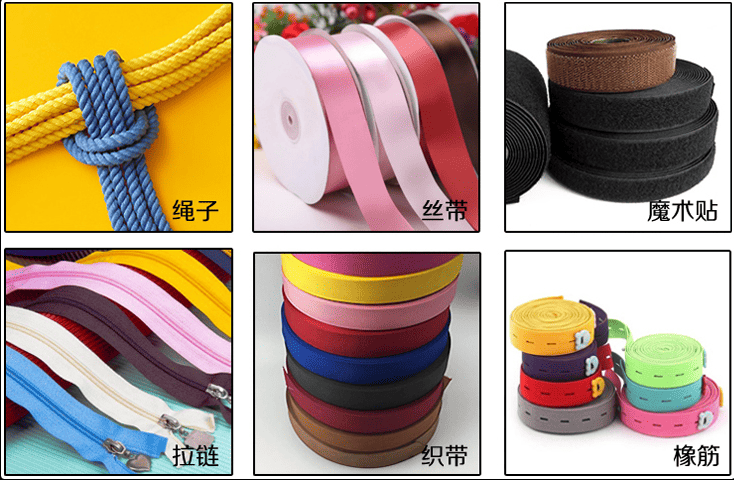

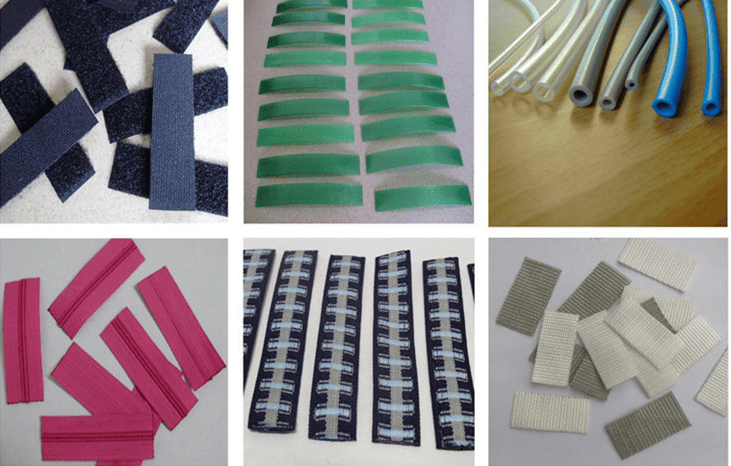

Compatible Materials & Cutting Samples

Review suitable materials and real cutting samples in one place. Final compatibility should be confirmed according to material thickness, structure and required cutting quality.

Satin Ribbon Silk Ribbon Grosgrain Ribbon Gift Ribbon Polyimide Tape Kapton Tape Thin Plastic Film Lace Tape Nickel Strip Double-sided Tape
Not sure whether your material can be processed?

Send the material name, width, thickness and a photo or sample for application review.

WhatsApp About Your Material
Cutting Performance

Thin Ribbon & Lightweight Tape Cutting Results

The HX-CHS04 converts continuous thin ribbon and lightweight tape rolls into individual pieces with preset lengths for subsequent sewing, packaging, decoration or product assembly. Typical materials include satin ribbon, organza ribbon, thin textile tape, label tape and other compatible lightweight narrow materials. Because very thin materials can differ significantly in surface smoothness, flexibility and thickness, actual-material testing is recommended when feeding stability or finished edge quality is important.

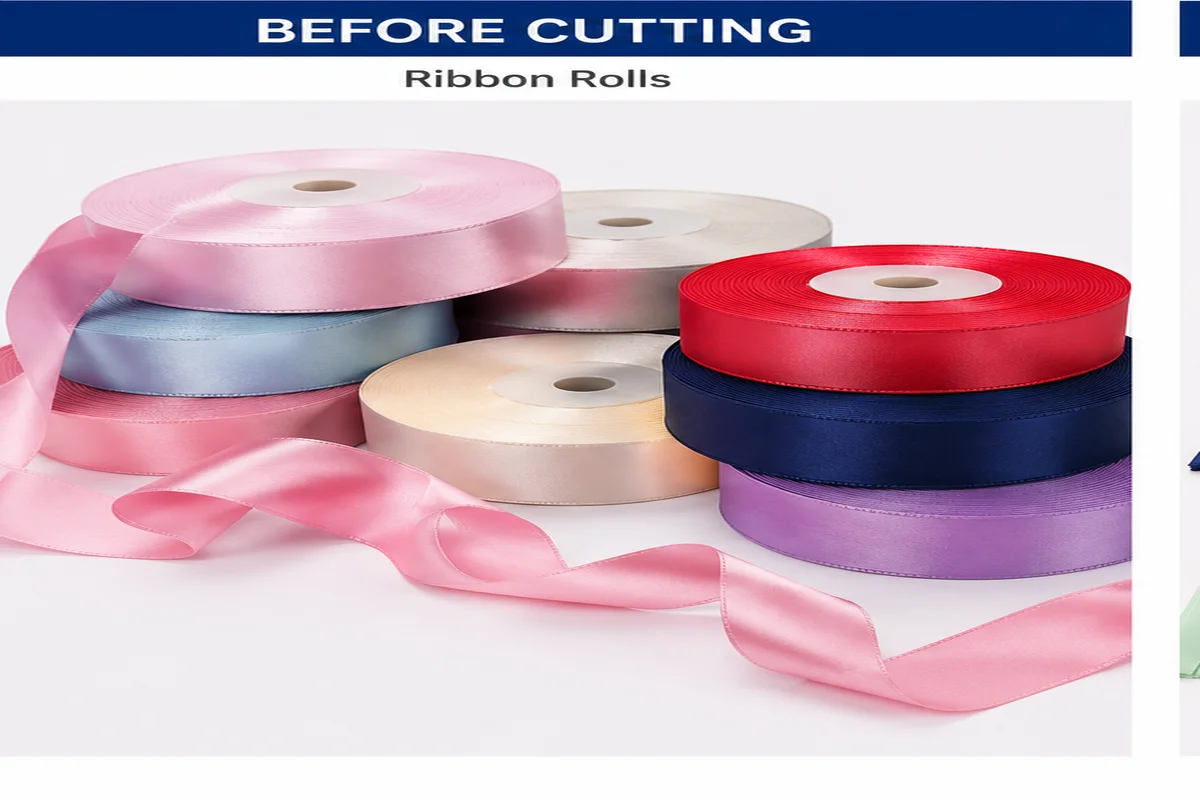

Automatic Thin Ribbon Tape Cutting Machine HX-CHS04 input material before cutting
Step 01

Input Material

Satin Ribbon, Silk Ribbon, Grosgrain Ribbon, Gift Ribbon, Polyimide Tape, Kapton Tape, Thin Plastic Film, Lace Tape, Nickel Strip, Double-sided Tape and similar flexible materials are prepared for stable feeding and cutting.

Automatic Thin Ribbon Tape Cutting Machine HX-CHS04 automatic cutting process
Step 02

Automatic Processing

Material is automatically fed, positioned and cut according to the programmed length, quantity and process settings.

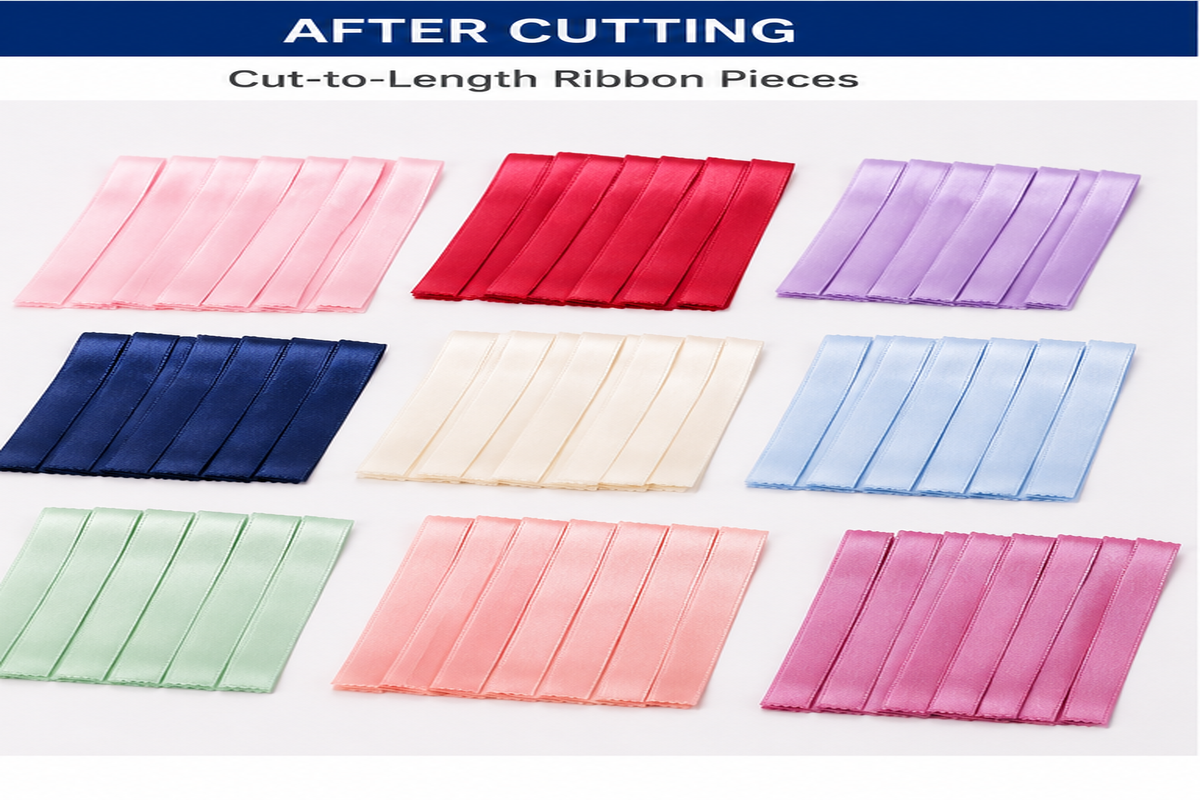

Automatic Thin Ribbon Tape Cutting Machine HX-CHS04 finished cutting result
Step 03

Finished Result

Finished pieces are reviewed for dimensions, cutting quality, edge condition and production consistency.

Clean Cutting Result
Repeatable Dimensions
Automatic Feeding
Finished-Part Inspection
Application Scenarios

Where Thin Ribbon Automatic Cutting Is Used

The HX-CHS04 is suitable for industries that repeatedly cut thin ribbon and lightweight narrow materials into preset lengths for sewing, decoration, packaging and product assembly.

Manufacturing Partner

Why Industrial Buyers Work With CUTOPIX

Manufacturing resources, assembly, electrical integration and quality control — practical proof behind every machine project.

Factory

Manufacturing & Engineering Capability

CUTOPIX specializes in the development and manufacturing of automatic cutting and punching equipment for flexible materials. Our production capabilities cover machine assembly, electrical integration, customized tooling, testing and quality inspection. Each machine can be configured according to the customer's material, cutting size, production process and automation requirements.

Industry Presence

Global Exhibitions & Industry Experience

We participate in industry exhibitions to present our cutting solutions and communicate directly with customers from different markets. These face-to-face exchanges help us better understand real production requirements and continuously improve our machines for different materials, applications and industries.

Customer Feedback

Trusted by Customers Worldwide

Our machines are used by customers in different industries and markets around the world. Customer feedback, repeat orders and real production results help demonstrate the reliability of our equipment and service. We value long-term cooperation and continue to provide technical support after delivery.

FAQ

Questions Industrial Buyers Usually Ask

Practical answers about materials, cutting capability, configuration and purchasing this machine.

01 What machine can automatically cut thin ribbon to a preset length?
An automatic thin ribbon cutting machine feeds continuous ribbon from a roll and cuts it into preset lengths. It is suitable for repetitive production where manual measuring and cutting would be inefficient.
02 Can the HX-CHS04 cut very thin satin ribbon?
Yes. The HX-CHS04 is designed for lightweight narrow materials such as satin ribbon. Because very thin ribbons can differ in flexibility and surface smoothness, testing the actual material is recommended before confirming the configuration.
03 Can an automatic cutting machine handle organza ribbon?
Compatible organza ribbon can be evaluated with the HX-CHS04. Feeding performance depends on the ribbon width, thickness, stiffness and surface characteristics, so actual-material testing is recommended.
04 What materials can a thin ribbon cutting machine cut?
Typical materials include satin ribbon, organza ribbon, thin textile tape, label tape and other compatible lightweight narrow roll materials.
05 Can I set different ribbon cutting lengths?
Yes. The cutting length can be programmed according to the required finished product, allowing the machine to produce different compatible lengths for different orders.
06 Is this machine suitable for making ribbon pieces for gift packaging?
Yes. It can prepare preset ribbon lengths for gift boxes, bows, decorative packaging and other applications that require repeated ribbon cutting.
07 Can it cut ribbon for hair bows and fashion accessories?
Yes. Thin satin, organza and decorative ribbons used for hair bows and fashion accessories are typical materials that can be evaluated for automatic cut-to-length production.
08 How do you prevent thin ribbon from feeding incorrectly?
Thin ribbon requires appropriate guiding and feeding according to its width, flexibility and surface characteristics. Testing the actual material helps determine the suitable machine configuration and feeding settings.
09 Is this machine suitable for thick webbing and heavy straps?
The HX-CHS04 is primarily intended for thin and lightweight narrow materials. For thick webbing, heavy straps or other demanding materials, a heavier-duty cutting machine may be more appropriate.
10 How do I choose between a thin ribbon cutter and a heavy-duty webbing cutter?
Choose according to the material rather than only the cutting width. Thin ribbon cutters are designed around lightweight flexible materials, while heavy-duty webbing cutters are more suitable for thicker, denser straps that require greater feeding and cutting capacity.
Discuss Your Application

Tell Us What You Need to Cut

The fastest way to recommend a suitable machine is to understand your material and finished cutting requirement.

01Material name, width and thickness
02Required cutting length, shape or punching method
03Target output or production requirement
04Voltage and any custom automation requirement
Send Photos / Drawings on WhatsApp

For photos, drawings or sample details, you can also send them through WhatsApp after submitting the form.
