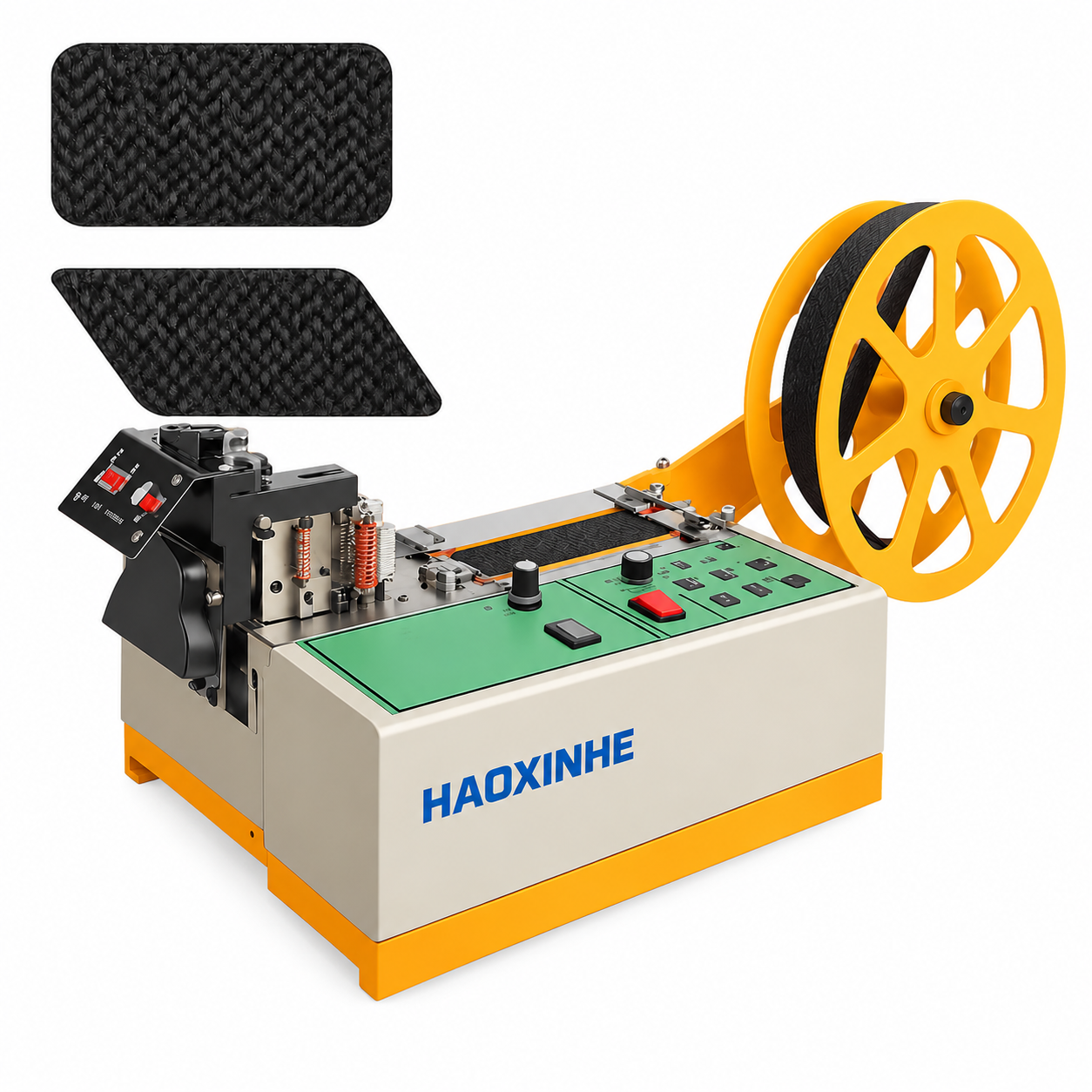

Webbing Straight & Bevel Hot Cutting Machine HX-CHS05

Automatic hot cutting machine for straight and bevel cutting of webbing, nylon and polyester straps. Supports 30°, 45°, 60°, 75° and 90° cutting angles with heated blades for clean, sealed edges.

Application-specific cutting configuration
Material testing before order confirmation
OEM / non-standard customization support
Remote technical and after-sales support
Discuss Your Material on WhatsApp
Webbing Straight & Bevel Hot Cutting Machine HX-CHS05
Model
HX-CHS05
Cutting Method
Hot
Model
HX-CHS05
Cutting Length
1-9999mm
Cutting Width
1-95mm
Thickness
0.01-4mm(others can custom)
Engineering Overview

What Is This Machine Designed to Do?

Understand the machine logic, suitable materials, process capability and application scope before comparing configurations.

Material Matched Application Reviewed Configuration Confirmed
Before Configuration Review
✓ Material type
✓ Width & thickness
✓ Required cut size
✓ Target output

The HX-CHS05 is an automatic hot cutting machine designed for straight and angled cutting of webbing, nylon tape, polyester straps and similar synthetic belt materials. It supports adjustable cutting angles of 30°, 45°, 60°, 75° and 90°, allowing one machine to handle both straight and bevel-cut products.

Upper and lower heated blades can reach up to 600°C, helping melt and seal synthetic material edges during cutting to reduce fraying. Automatic feeding, length setting and continuous cutting make the machine suitable for repeated production of straps and webbing components with different lengths and end-angle requirements.

The machine can also be configured with a marking function when positioning marks are required. Cutting performance and suitable settings depend on the actual material, width, thickness and required cut angle, so sample testing is recommended before final configuration.

Why This Configuration

Match the Machine to the Production Requirement.

A suitable cutting machine should match the actual material, production workflow and required finished result — not just a catalog specification.

01

Material Fit

Review material type, width, thickness, structure and cutting behavior before confirming the machine configuration.

Material
02

Process Fit

Confirm that feeding, positioning, cutting and collection match the required production sequence and handling method.

Workflow
03

Output Fit

Evaluate required dimensions, cut quality and target output so the final setup matches the intended production result.

Result
Process Flow

How the Machine Works

A clear process view helps engineering and purchasing teams evaluate whether the machine fits their production flow.

01

Load Material

Install the roll, strip, sheet or workpiece according to the machine configuration.

02

Set Parameters

Set length, quantity, speed or processing parameters through the control system.

03

Automatic Processing

The feeding and cutting / punching sequence runs according to the programmed settings.

04

Collect & Inspect

Finished parts are collected and checked for size, shape and cutting quality.

Machine Video

Watch the HX-CHS05 Straight & Bevel Cutting Process

Watch how the HX-CHS05 automatically feeds, positions and hot-cuts webbing at the required length and angle. The video helps you evaluate the feeding stability, cutting action, edge sealing and finished cutting result before choosing a machine configuration.

Feeding & handling
Cutting action
Finished result
Operating sequence
Technical Specifications

Core Machine Parameters

Use these values for a quick engineering review. Final speed and configuration should be confirmed with the actual material and required finished result.

Model
HX-CHS05
Cutting Length
1-9999mm
Cutting Width
1-95mm
Material Thickness
0.01-4mm(others can custom)
Cutting / Blade Type
Hot
Suitable Materials
Nylon Webbing, Polyester Strap, Seat Belt, PP Tape, Safety Harness, Braided Belt, Synthetic Ribbon, Parachute Webbing, Backpack Strap
Confirm Before Ordering
Need a recommendation based on your width, thickness and target speed?
WhatsApp Us
Customization Options

Custom Options for Your Webbing

The HX-CHS05 can be configured according to your actual webbing and finished-product requirements. We can evaluate the cutting setup based on material type, width, thickness, required length and cutting angle. A marking function can also be added when positioning marks are required for subsequent sewing or assembly. For special applications, send us your material sample or product drawing so the cutting result can be tested before production.

Typical Customization Requests
Cutting Method Working Width Feeding Sensors Voltage Rewinding
?
Not sure which option fits your production?

Send material photos, width, thickness and your target cutting result for configuration review.

WhatsApp About Customization
◇
Application
Matched
⚙
Engineering
Reviewed
✓
Configuration
Confirmed
Available Customization
01

Cutting Method

Hot / cold / blade / punching / die-cutting according to application.

02

Working Width & Length

Standard range or project-specific dimension review.

03

Feeding System

Standard feeding, unwinding and tension-control options.

04

Punching / Tooling

Custom dies, hole patterns, cutting shapes and fixtures.

05

Control Logic

PLC / servo / sensor-linked process sequence customization.

06

Electrical Standard

110V / 220V / 380V and 50/60Hz by destination.

07

OEM Branding

Machine label, logo and project-specific identification.

08

Collection / Rewinding

Collection, rewinding or downstream handling options.

Testing Before Shipment

Test Your Webbing Before Shipment

Before shipment, we can test the HX-CHS05 with customer-provided or similar webbing materials to verify feeding, cutting length, selected cutting angle and edge sealing performance. For special materials or finished-product requirements, we recommend sending samples in advance so the machine settings can be evaluated under actual cutting conditions.

01

Customer Sample

Receive material samples, drawings or detailed process requirements.

02

Machine Setup

Adjust feeding, cutting, tooling and control parameters for the application.

03

Material Test

Run the actual material and inspect cutting quality, dimensions and stability.

04

Video Confirmation

Share running videos and finished samples for buyer confirmation when required.

05

Packing & Shipment

Complete final inspection, secure packing and shipment preparation.

✓ Cutting Quality
✓ Size & Accuracy
✓ Continuous Running
✓ Electrical / Safety Check
Material Capability

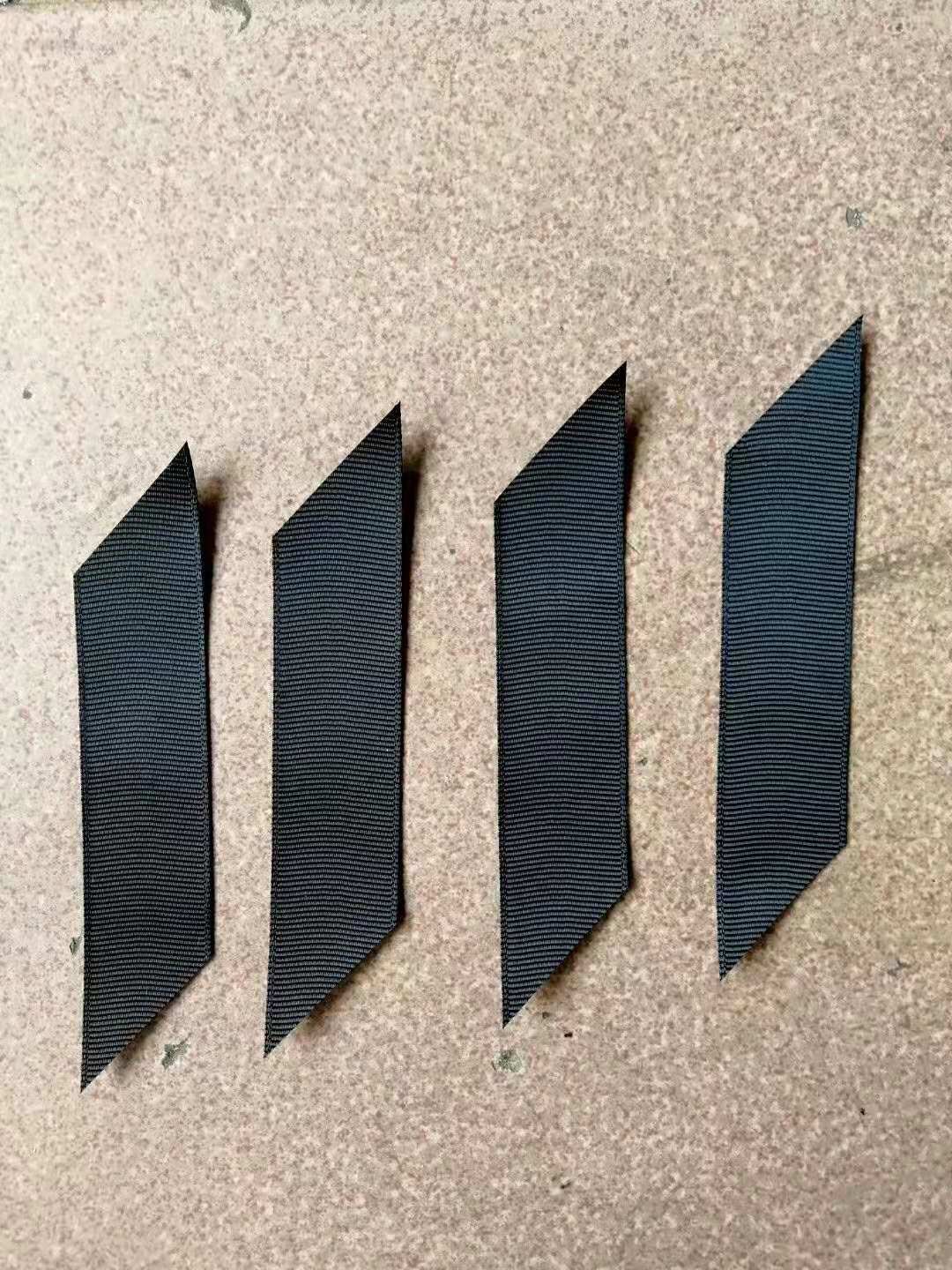

Compatible Materials & Cutting Samples

Review suitable materials and real cutting samples in one place. Final compatibility should be confirmed according to material thickness, structure and required cutting quality.

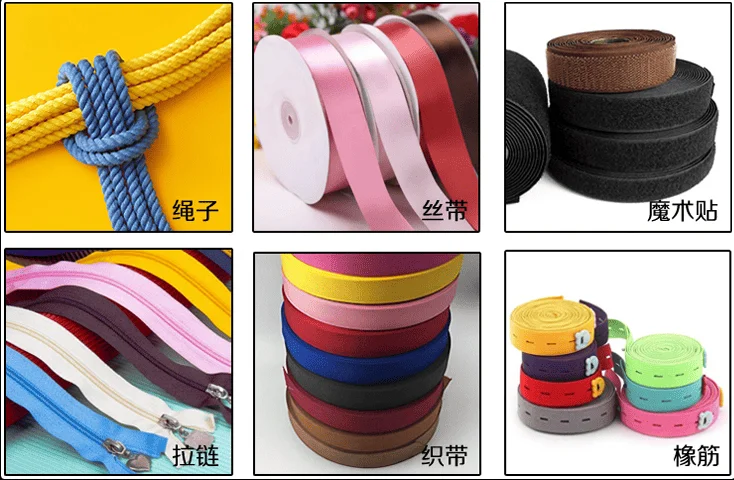

Nylon Webbing Polyester Strap Seat Belt PP Tape Safety Harness Braided Belt Synthetic Ribbon Parachute Webbing Backpack Strap
Not sure whether your material can be processed?

Send the material name, width, thickness and a photo or sample for application review.

WhatsApp About Your Material
Manufacturing Partner

Why Industrial Buyers Work With CUTOPIX

Manufacturing resources, assembly, electrical integration and quality control — practical proof behind every machine project.

Factory

Manufacturing & Engineering Capability

CUTOPIX specializes in the development and manufacturing of automatic cutting and punching equipment for flexible materials. Our production capabilities cover machine assembly, electrical integration, customized tooling, testing and quality inspection. Each machine can be configured according to the customer's material, cutting size, production process and automation requirements.

Industry Presence

Global Exhibitions & Industry Experience

We participate in industry exhibitions to present our cutting solutions and communicate directly with customers from different markets. These face-to-face exchanges help us better understand real production requirements and continuously improve our machines for different materials, applications and industries.

Customer Feedback

Trusted by Customers Worldwide

Our machines are used by customers in different industries and markets around the world. Customer feedback, repeat orders and real production results help demonstrate the reliability of our equipment and service. We value long-term cooperation and continue to provide technical support after delivery.

FAQ

Questions Industrial Buyers Usually Ask

Practical answers about materials, cutting capability, configuration and purchasing this machine.

01 What cutting angles can the HX-CHS05 produce on webbing?

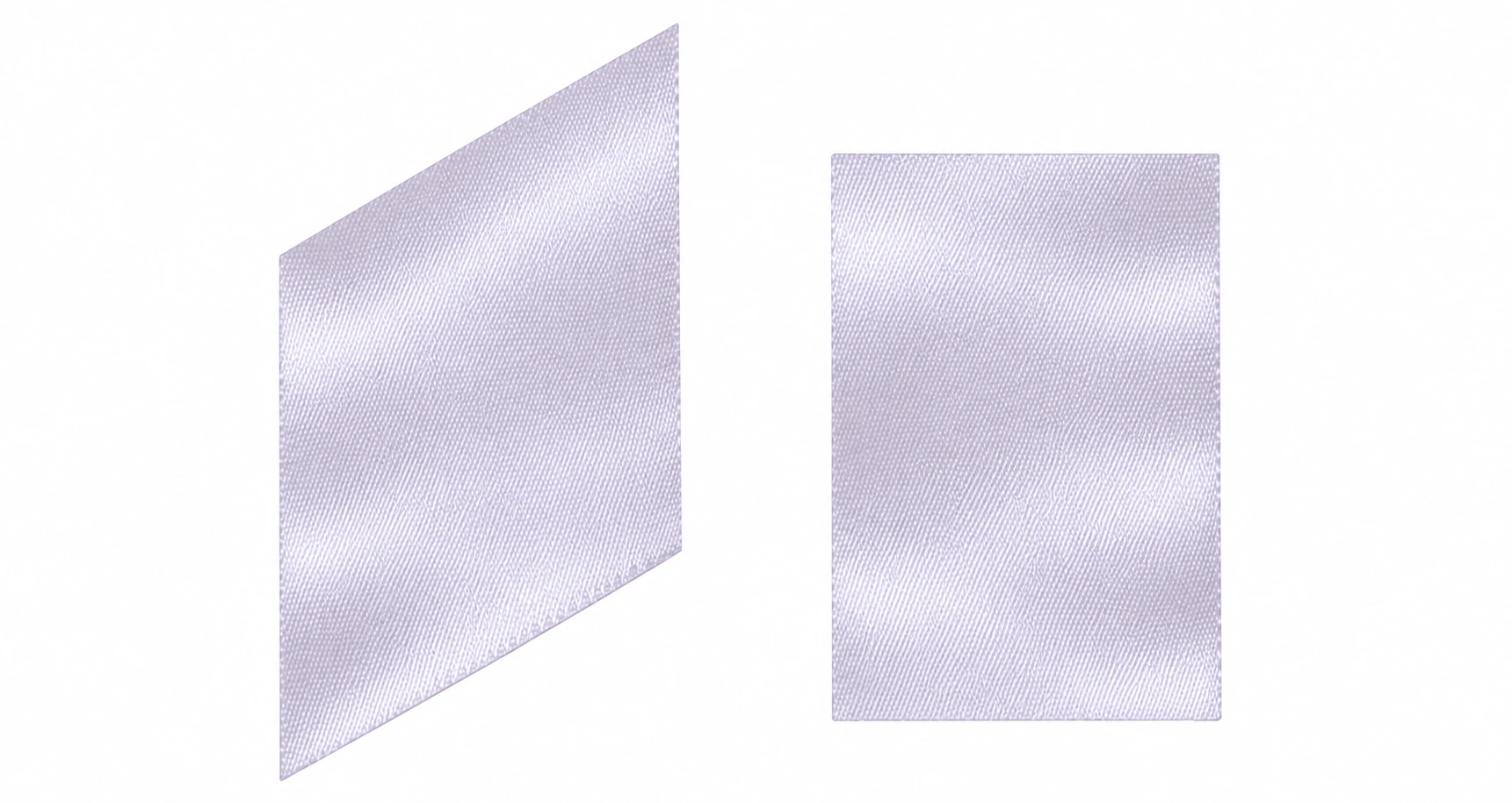

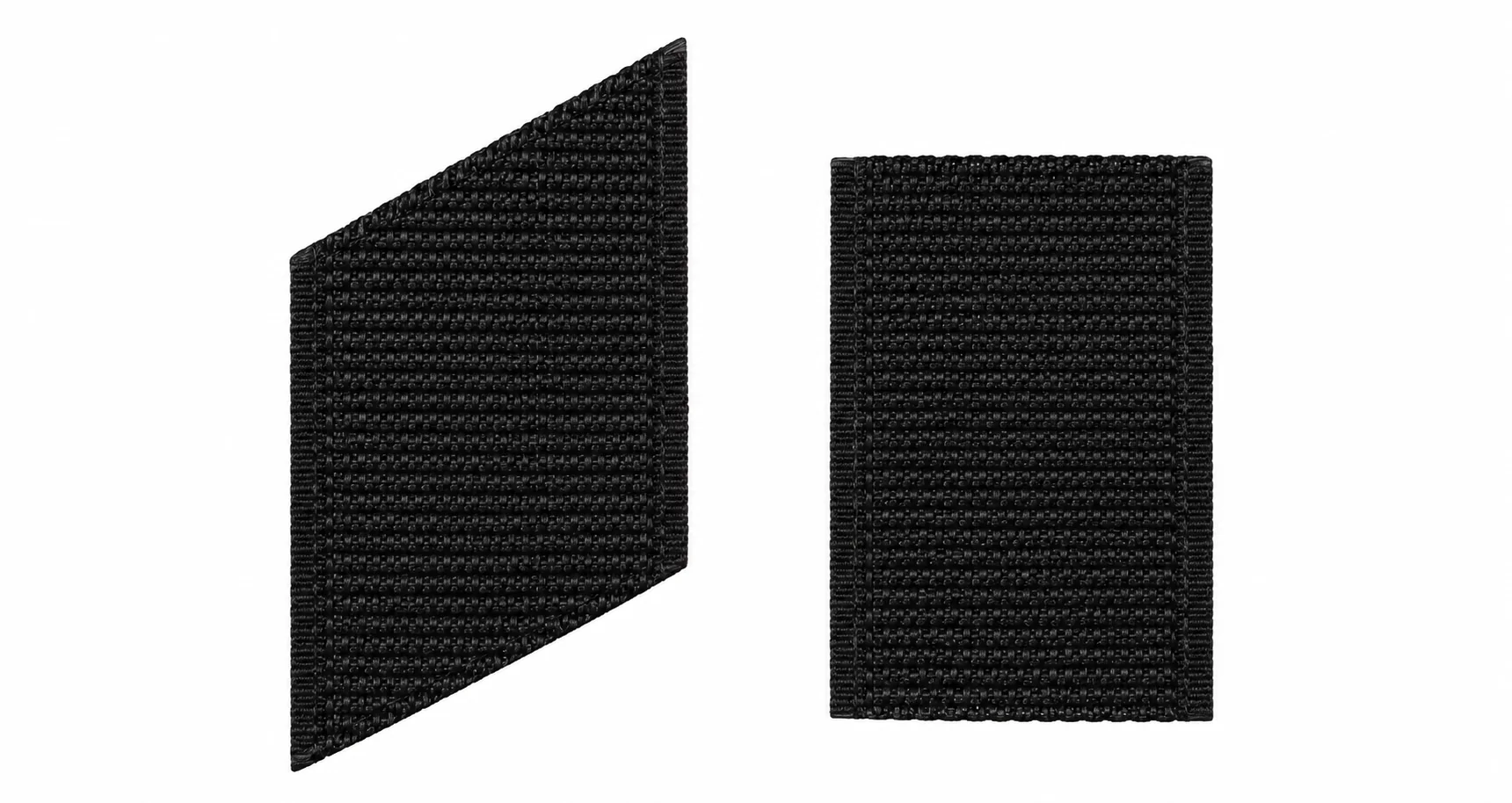

The HX-CHS05 supports 30°, 45°, 60°, 75° and 90° cutting. This allows the same machine to produce both straight-cut and bevel-cut webbing ends for different product designs.
02 How does the HX-CHS05 prevent fraying after bevel cutting?
The machine uses upper and lower heated blades to cut and heat-seal suitable synthetic webbing at the same time. This is especially useful for nylon and polyester webbing where an untreated angled edge may fray after cutting.
03 Can the same machine make both straight and diagonal cuts?
Yes. The HX-CHS05 is designed for both 90° straight cutting and angled cutting at 30°, 45°, 60° and 75°. This is useful when a factory produces several strap designs with different end shapes.
04 Why are both upper and lower heated blades used for bevel cutting?
Heating from both sides helps provide more consistent heat at the cutting area, especially when processing wider or thicker synthetic webbing. Blade temperature can reach up to 600°C and should be adjusted according to the actual material.
05 Will a 45° cut have the same result on different webbing thicknesses?
Not necessarily. Webbing thickness, weave density, material composition and heat response can affect the appearance of the angled edge. For this reason, the cutting temperature and operating settings should be matched to the actual webbing.
06 Can the HX-CHS05 cut wide webbing at an angle?
The machine supports webbing up to 200 mm wide. For wide or thick materials, the required angle, material construction and cutting result should be evaluated together because bevel cutting creates a longer cutting path than a 90° straight cut.
07 Can it add a positioning mark before the webbing is cut?
Yes. A marking function can be added for applications where the webbing requires a reference position for later sewing, folding or assembly.
08 What webbing should be tested before choosing this machine?
Sample testing is particularly recommended for thick webbing, tightly woven straps, coated materials and special synthetic blends. The test can confirm whether the required cutting angle, edge sealing and finished appearance can be achieved before the final machine configuration is determined.
Discuss Your Application

Tell Us What You Need to Cut

The fastest way to recommend a suitable machine is to understand your material and finished cutting requirement.

01Material name, width and thickness
02Required cutting length, shape or punching method
03Target output or production requirement
04Voltage and any custom automation requirement
Send Photos / Drawings on WhatsApp

For photos, drawings or sample details, you can also send them through WhatsApp after submitting the form.
