Automatic Corrugated Tube Cutting Machine

Corrugated Tube Cutting Solutions for Different Processing Requirements

Application-specific cutting configuration
Material testing before order confirmation
OEM / non-standard customization support
Remote technical and after-sales support
Discuss Your Material on WhatsApp
Automatic Corrugated Tube Cutting Machine
Model
HX-PT06 / HX-PT07 / HX-PT08 / HX-PT09 / HX-PT010
Cutting Method
Cold
Model
HX-PT06 / HX-PT07 / HX-PT08 / HX-PT09 / HX-PT010
Cutting Length
1-9999mm
Cutting Width
1-95mm
Thickness
Depends on tube diameter, wall thickness and corrugated profile
Engineering Overview

What Is This Machine Designed to Do?

Understand the machine logic, suitable materials, process capability and application scope before comparing configurations.

Material Matched Application Reviewed Configuration Confirmed
Before Configuration Review
✓ Material type
✓ Width & thickness
✓ Required cut size
✓ Target output

CUTOPIX automatic corrugated tube cutting machines are designed for precise cut-to-length processing of corrugated tubes, wire looms, flexible conduits and corrugated hoses. From standard length cutting to peak/valley positioning, punching and vision-assisted cutting, different configurations are available to match the actual tube diameter, profile and production requirements.

Why This Configuration

Match the Machine to the Production Requirement.

A suitable cutting machine should match the actual material, production workflow and required finished result — not just a catalog specification.

01

Material Fit

Review material type, width, thickness, structure and cutting behavior before confirming the machine configuration.

Material
02

Process Fit

Confirm that feeding, positioning, cutting and collection match the required production sequence and handling method.

Workflow
03

Output Fit

Evaluate required dimensions, cut quality and target output so the final setup matches the intended production result.

Result
Process Flow

How the Machine Works

A clear process view helps engineering and purchasing teams evaluate whether the machine fits their production flow.

01

Load Material

Install the roll, strip, sheet or workpiece according to the machine configuration.

02

Set Parameters

Set length, quantity, speed or processing parameters through the control system.

03

Automatic Processing

The feeding and cutting / punching sequence runs according to the programmed settings.

04

Collect & Inspect

Finished parts are collected and checked for size, shape and cutting quality.

Machine Video

Automatic Silicone & Corrugated Tube Cutting Machine in Action

Watch the automatic tube cutting machine perform continuous feeding and high-speed preset-length cutting of silicone tubing. The machine automatically feeds, measures and cuts the tube according to the preset length and quantity, helping improve cutting consistency and production efficiency. It is suitable for silicone tubes, corrugated tubes, PVC tubes, rubber tubes and other flexible tubing materials.

Feeding & handling
Cutting action
Finished result
Operating sequence
Technical Specifications

Core Machine Parameters

Use these values for a quick engineering review. Final speed and configuration should be confirmed with the actual material and required finished result.

Model
HX-PT06 / HX-PT07 / HX-PT08 / HX-PT09 / HX-PT010
Cutting Length
1-9999mm
Cutting Width
1-95mm
Material Thickness
Depends on tube diameter, wall thickness and corrugated profile
Cutting / Blade Type
Cold
Suitable Materials
Corrugated Tube, Corrugated Pipe, Corrugated Hose, Flexible Conduit, Wire Loom, Plastic Corrugated Tubing
Technical reference image. Final configuration follows the confirmed application.
Confirm Before Ordering
Need a recommendation based on your width, thickness and target speed?
WhatsApp Us
Engineering Details

Built for Stable Corrugated Tube Feeding and Cutting

Corrugated tubing requires more than simple length cutting. Its repeating peak-and-valley profile can affect feeding, positioning and the final cut location. CUTOPIX machines use controlled feeding and dedicated cutting configurations to improve positioning consistency and repeatability. Depending on the application, the system can be configured with peak/valley detection, punching, vision positioning and automatic unwinding.

Detail 01

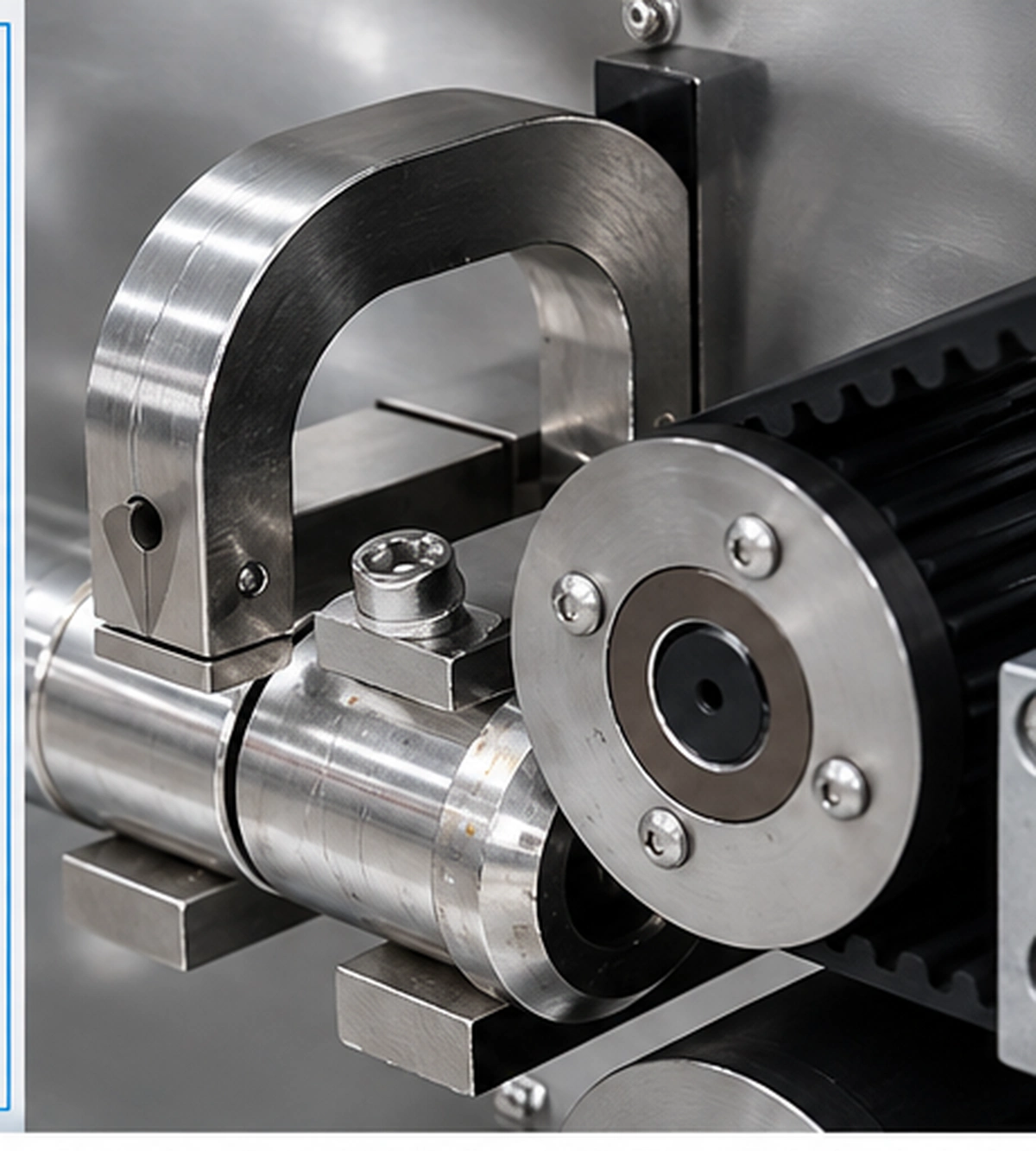

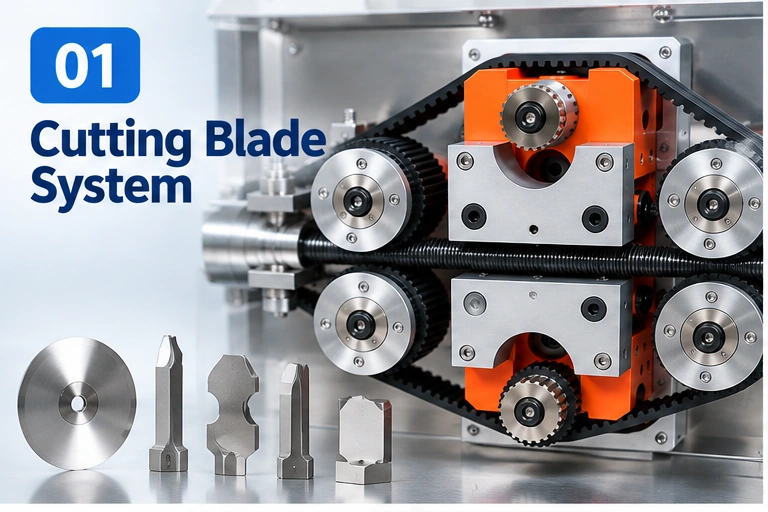

Cutting Unit / Blade Area

Core processing area for cutting, punching or die-cutting according to the machine type.

Detail 02

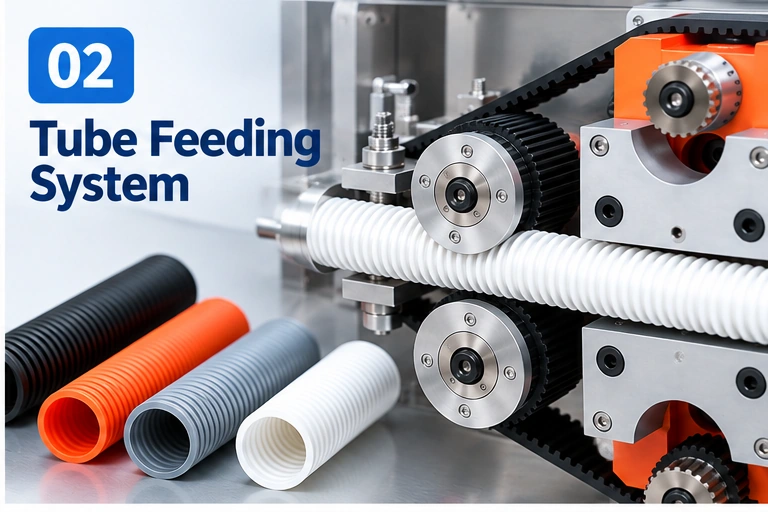

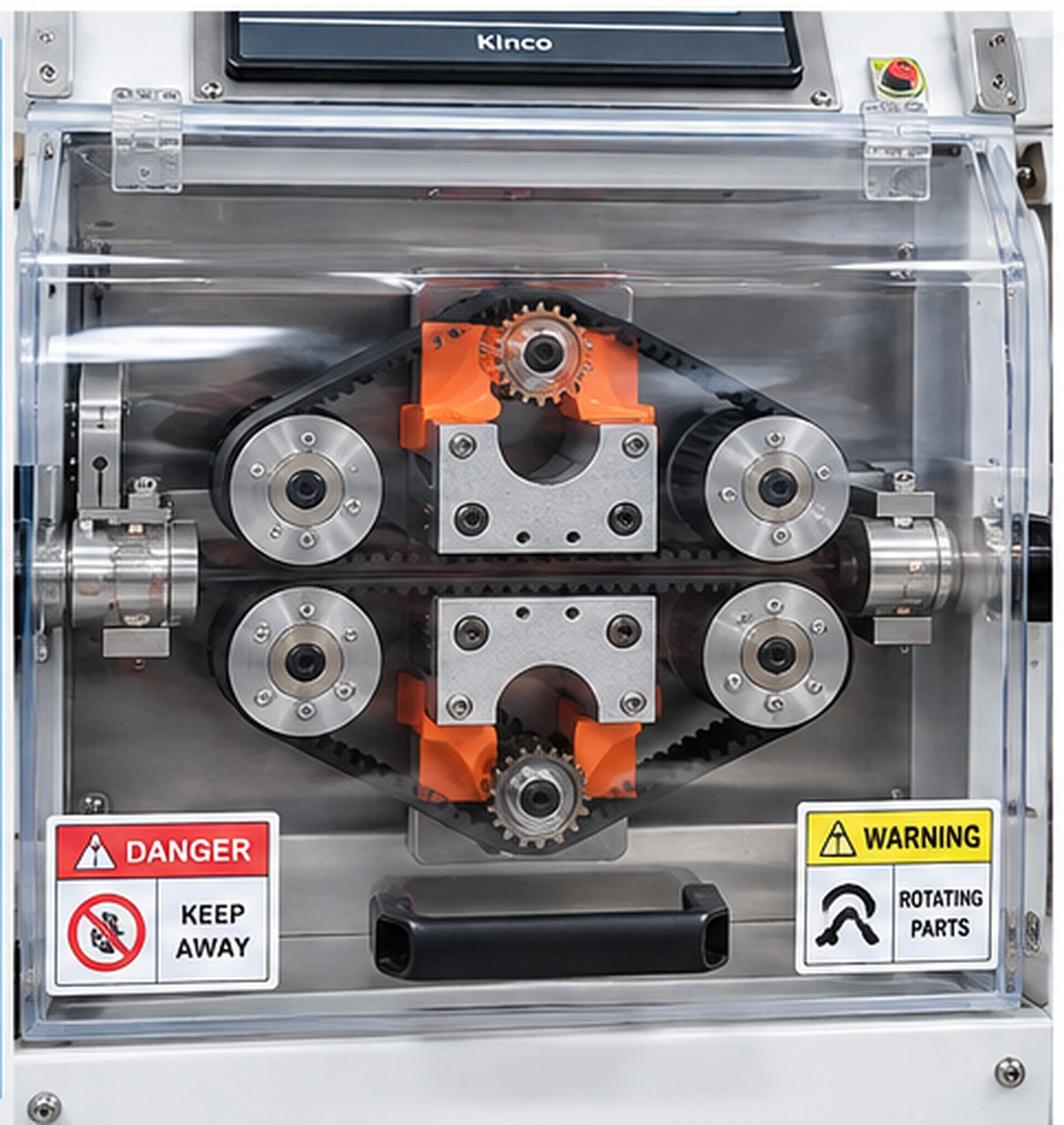

Automatic Feeding System

Supports stable material movement and repeatable positioning during continuous production.

Detail 03

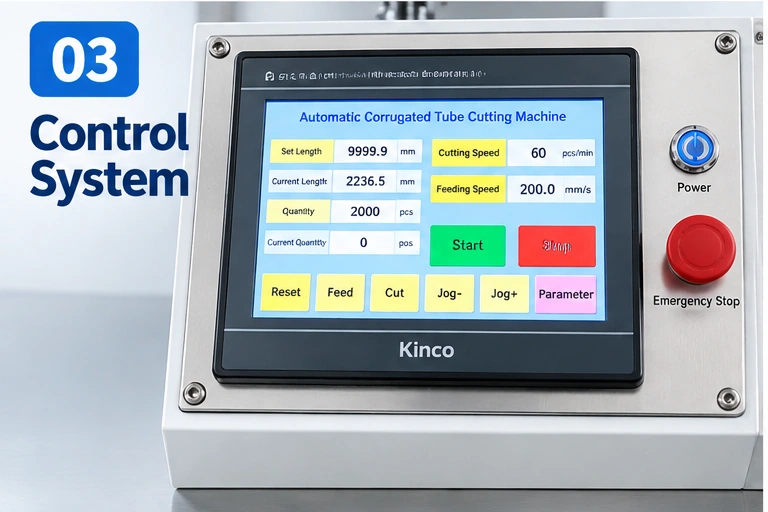

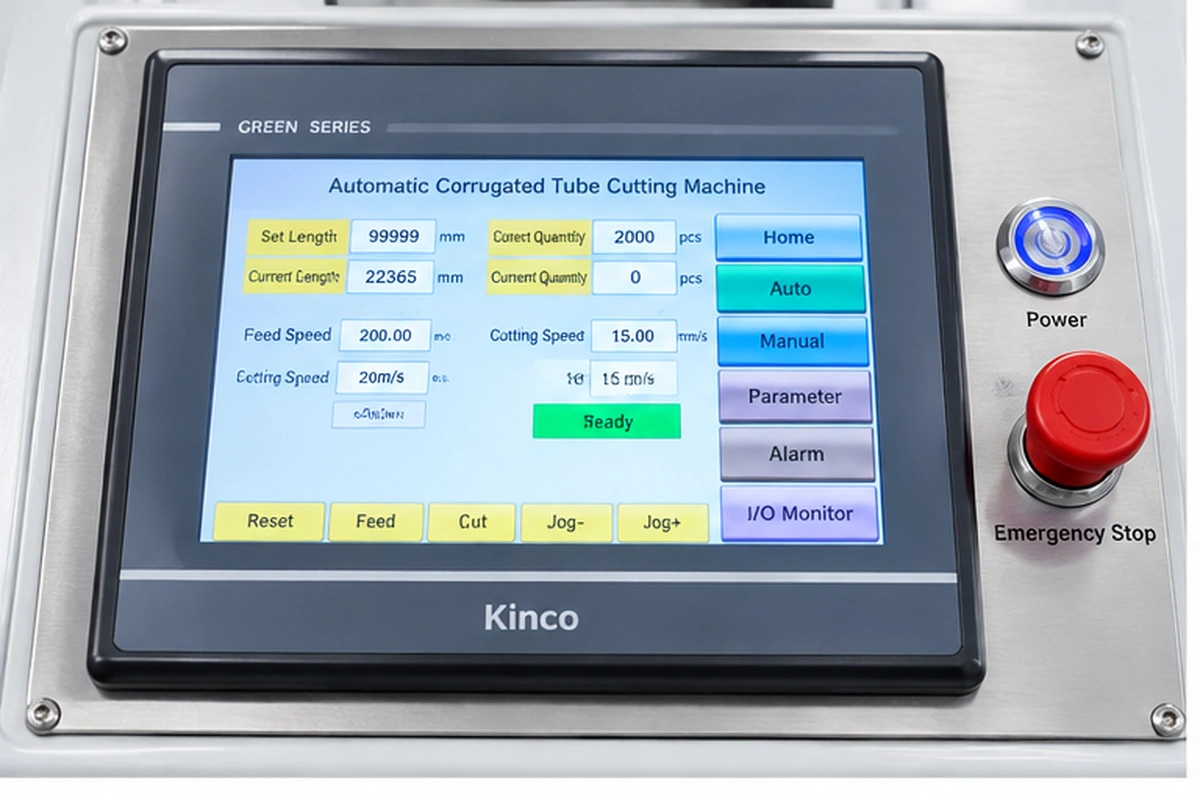

Control & Parameter Setting

Operators can set length, quantity, speed and related process parameters from the control interface.

Customization Options

Configure the Machine Around Your Corrugated Tube

Corrugated tubes vary in diameter, wall thickness, pitch, material and profile. Instead of recommending one machine for every application, CUTOPIX evaluates the actual tube and finished-part requirements first. Cutting diameter, feeding system, positioning method, punching function, unwinding system and other configurations can be customized according to the project.

Typical Customization Requests
Cutting Method Working Width Feeding Sensors Voltage Rewinding
?
Not sure which option fits your production?

Send material photos, width, thickness and your target cutting result for configuration review.

WhatsApp About Customization
◇
Application
Matched
⚙
Engineering
Reviewed
✓
Configuration
Confirmed
Available Customization
01

Cutting Method

Hot / cold / blade / punching / die-cutting according to application.

02

Working Width & Length

Standard range or project-specific dimension review.

03

Feeding System

Standard feeding, unwinding and tension-control options.

04

Punching / Tooling

Custom dies, hole patterns, cutting shapes and fixtures.

05

Control Logic

PLC / servo / sensor-linked process sequence customization.

06

Electrical Standard

110V / 220V / 380V and 50/60Hz by destination.

07

OEM Branding

Machine label, logo and project-specific identification.

08

Collection / Rewinding

Collection, rewinding or downstream handling options.

Testing Before Shipment

Send Your Corrugated Tube for Cutting Test

For applications where tube profile, diameter or cutting position may affect the result, we recommend testing the actual material before final machine confirmation. Send us your corrugated tube sample together with the required cutting length, diameter and finished-part requirements. We can evaluate the material, confirm the suitable configuration and provide cutting samples or a test video before shipment.

01

Customer Sample

Receive material samples, drawings or detailed process requirements.

02

Machine Setup

Adjust feeding, cutting, tooling and control parameters for the application.

03

Material Test

Run the actual material and inspect cutting quality, dimensions and stability.

04

Video Confirmation

Share running videos and finished samples for buyer confirmation when required.

05

Packing & Shipment

Complete final inspection, secure packing and shipment preparation.

✓ Cutting Quality
✓ Size & Accuracy
✓ Continuous Running
✓ Electrical / Safety Check

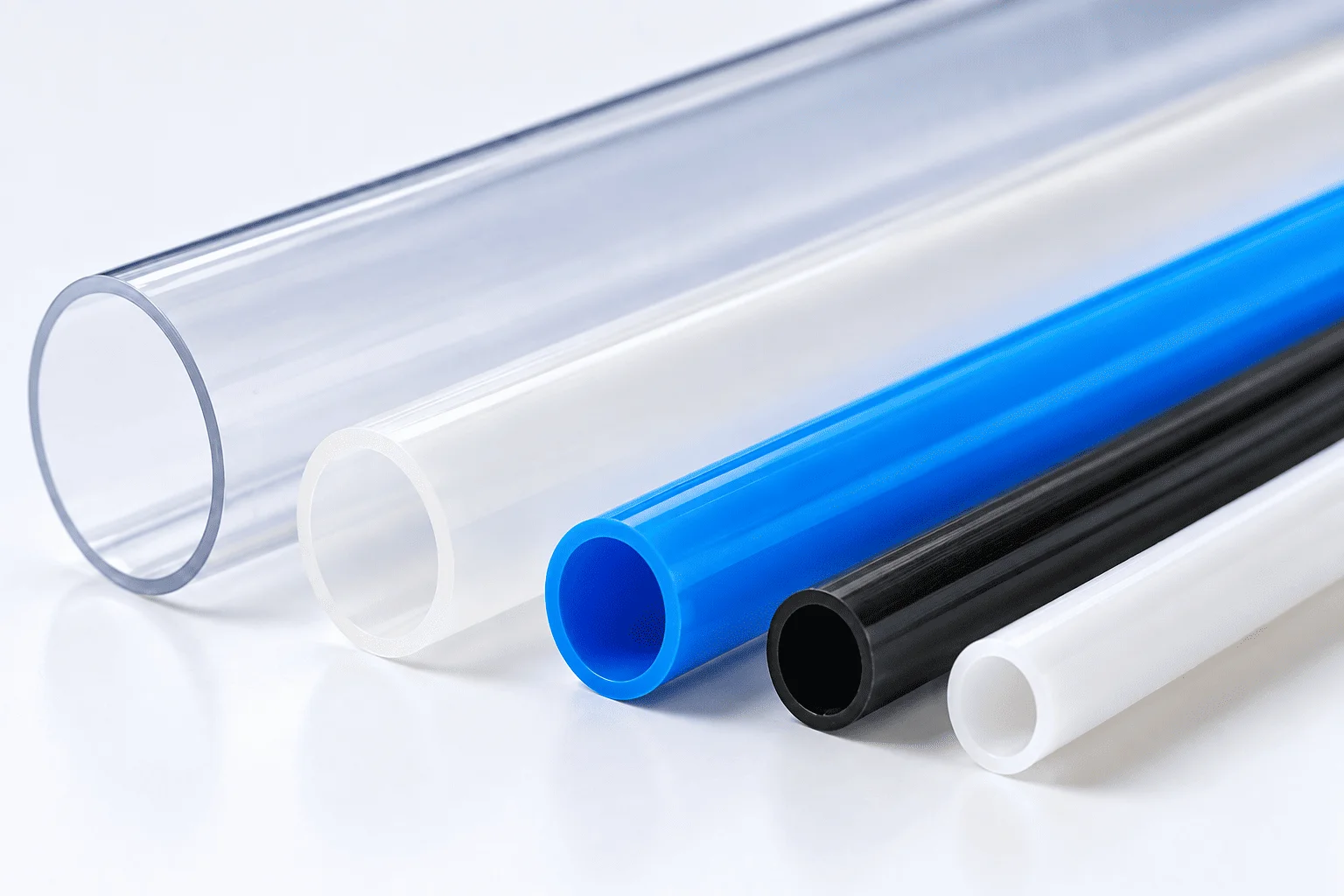

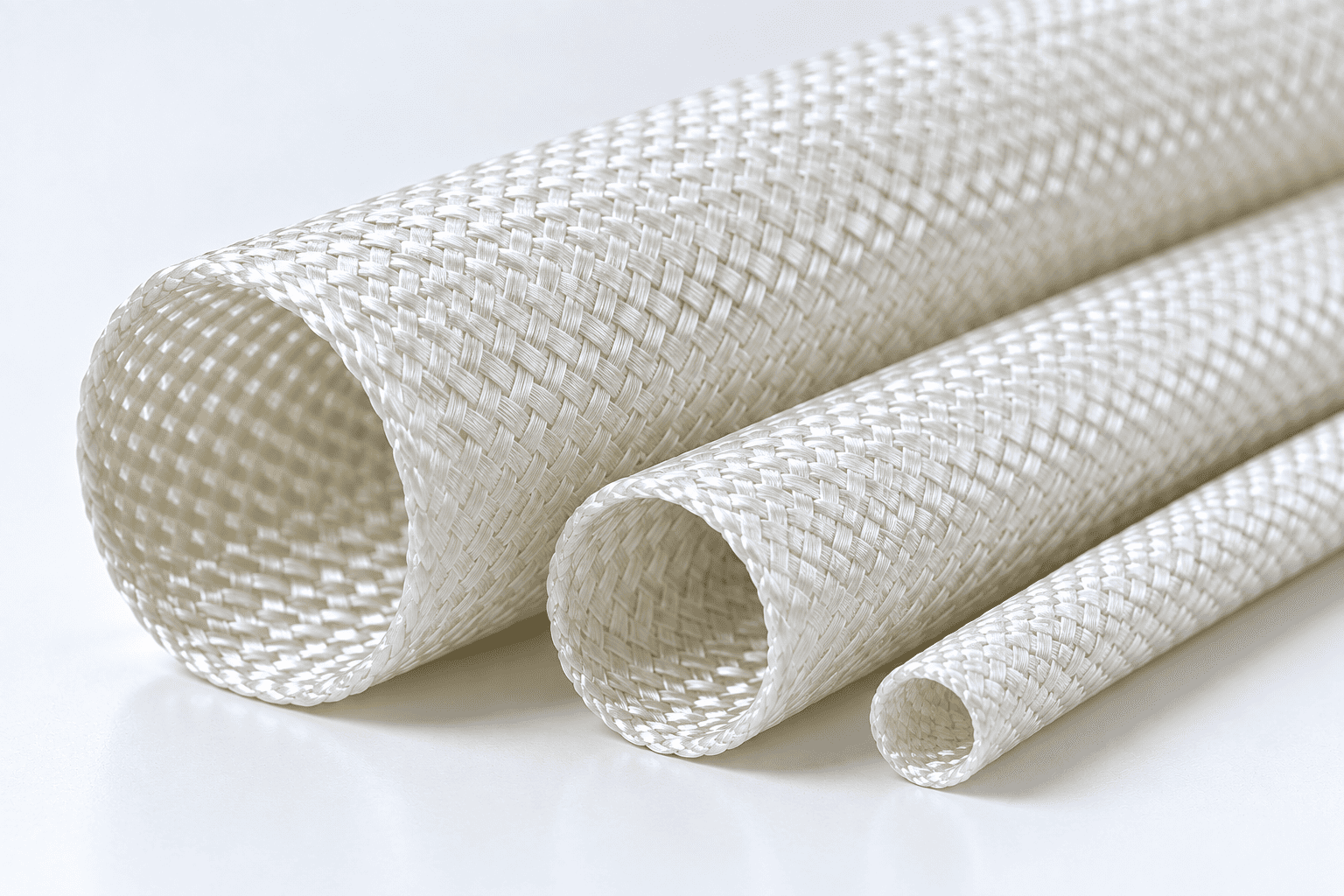

Material Capability

Compatible Materials & Cutting Samples

Review suitable materials and real cutting samples in one place. Final compatibility should be confirmed according to material thickness, structure and required cutting quality.

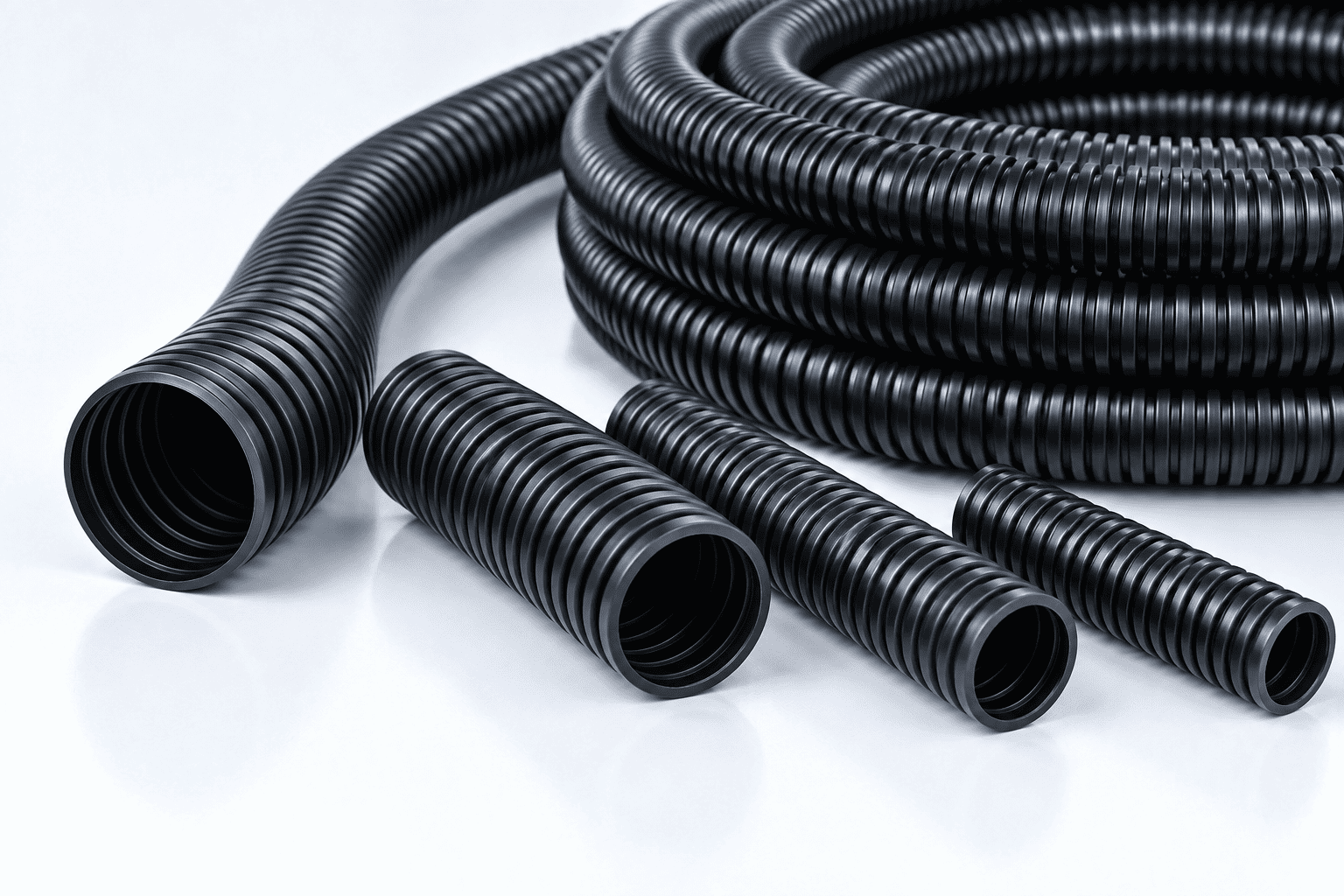

Corrugated Tube Corrugated Pipe Corrugated Hose Flexible Conduit Wire Loom Plastic Corrugated Tubing
Not sure whether your material can be processed?

Send the material name, width, thickness and a photo or sample for application review.

WhatsApp About Your Material
Cutting Performance

See the Corrugated Tube Before and After Cutting

The finished cut depends on the corrugated profile, tube diameter, material and required cutting position. CUTOPIX can test the actual tube before production and recommend standard length cutting, peak/valley positioning, vision positioning or cutting with punching according to the application.

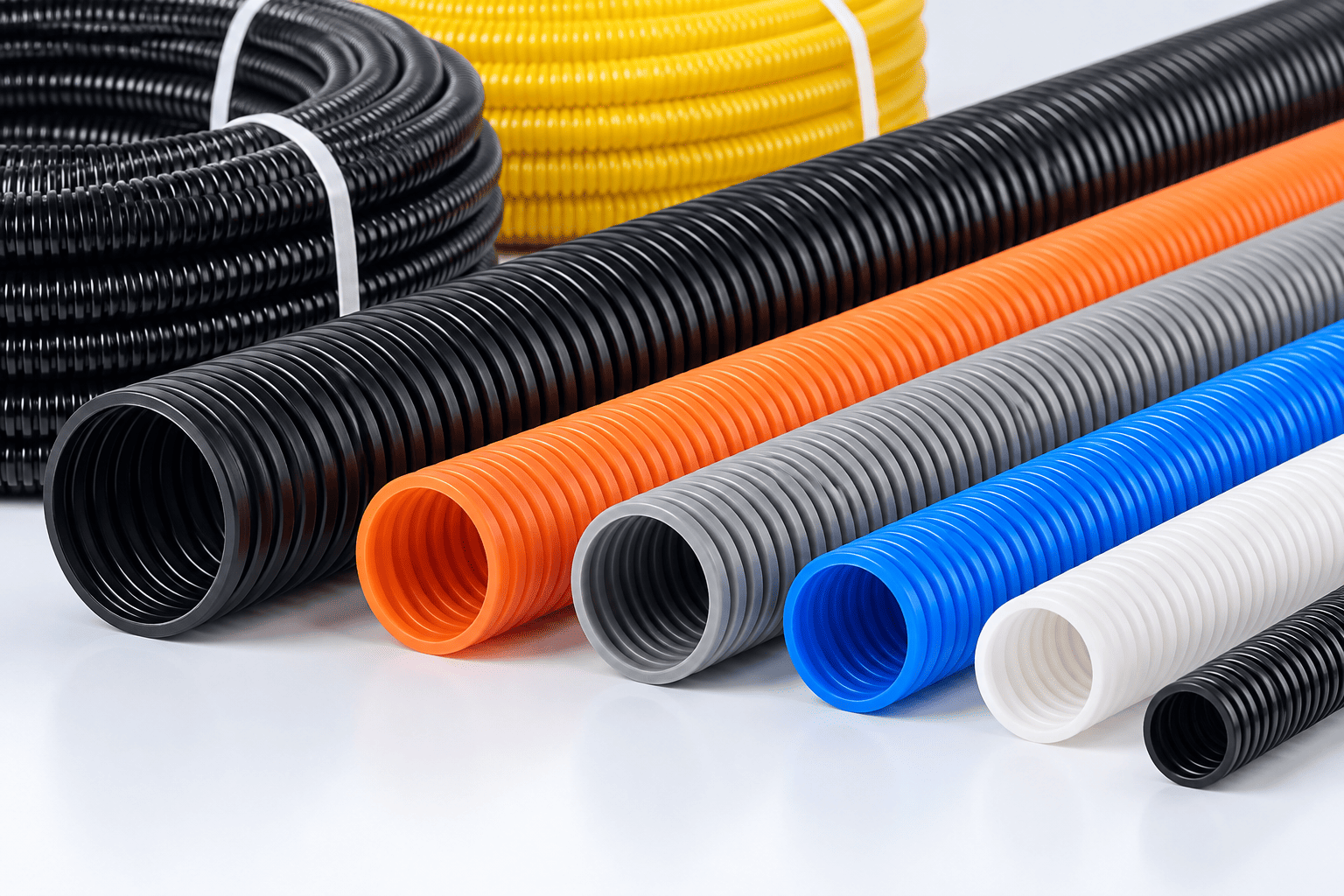

Automatic Corrugated Tube Cutting Machine input material before cutting
Step 01

Input Material

Corrugated Tube, Corrugated Pipe, Corrugated Hose, Flexible Conduit, Wire Loom, Plastic Corrugated Tubing and similar flexible materials are prepared for stable feeding and cutting.

Automatic Corrugated Tube Cutting Machine automatic cutting process
Step 02

Automatic Processing

Material is automatically fed, positioned and cut according to the programmed length, quantity and process settings.

Automatic Corrugated Tube Cutting Machine finished cutting result
Step 03

Finished Result

Finished pieces are reviewed for dimensions, cutting quality, edge condition and production consistency.

Clean Cutting Result
Repeatable Dimensions
Automatic Feeding
Finished-Part Inspection
Application Scenarios

Corrugated Tube Cutting for Automotive, Electrical and Industrial Applications

Corrugated tubing is widely used for wire protection, cable management, automotive wiring harnesses, electrical conduits and industrial hose applications. CUTOPIX provides different cutting configurations according to the tube profile, diameter, required length, cutting position and downstream processing requirements.

Manufacturing Partner

Why Industrial Buyers Work With CUTOPIX

Manufacturing resources, assembly, electrical integration and quality control — practical proof behind every machine project.

Factory

Manufacturing & Engineering Capability

CUTOPIX specializes in the development and manufacturing of automatic cutting and punching equipment for flexible materials. Our production capabilities cover machine assembly, electrical integration, customized tooling, testing and quality inspection. Each machine can be configured according to the customer's material, cutting size, production process and automation requirements.

Industry Presence

Global Exhibitions & Industry Experience

We participate in industry exhibitions to present our cutting solutions and communicate directly with customers from different markets. These face-to-face exchanges help us better understand real production requirements and continuously improve our machines for different materials, applications and industries.

Customer Feedback

Trusted by Customers Worldwide

Our machines are used by customers in different industries and markets around the world. Customer feedback, repeat orders and real production results help demonstrate the reliability of our equipment and service. We value long-term cooperation and continue to provide technical support after delivery.

FAQ

Questions Industrial Buyers Usually Ask

Practical answers about materials, cutting capability, configuration and purchasing this machine.

01 What types of corrugated tubes can the machine cut?
The machine can process various flexible corrugated tubes, wire looms, conduits and corrugated hoses. Final compatibility depends on the tube material, diameter, wall thickness and profile.
02 Can the machine cut at the peak or valley of the corrugated tube?
Yes. Peak/valley positioning configurations are available for applications where the cutting position must follow the corrugated profile.
03 Can the machine cut and punch holes at the same time?
Yes. The HX-PT08 configuration can integrate tube cutting and punching in one process. Hole size, position and tooling should be confirmed according to the finished part.
04 What cutting length can be programmed?
Programmable cut-to-length processing is available. The suitable machine and achievable range depend on the tube diameter, profile and feeding configuration.
05 Can you test my corrugated tube before I order?
Yes. Sending the actual tube sample is recommended for special profiles or applications requiring controlled cutting positions. We can evaluate the material and confirm the appropriate machine configuration.

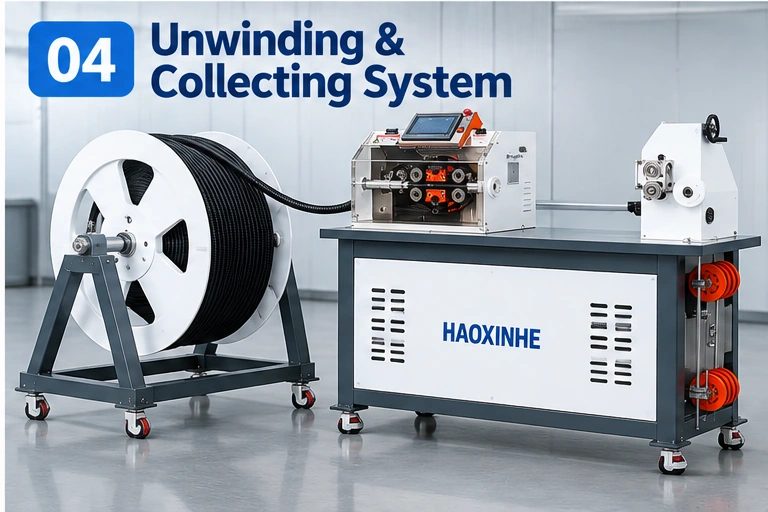

06 Can the machine automatically feed tubing from a coil?
Yes. Automatic unwinding and feeding systems are available for continuous production, especially for long coils and higher-volume applications.
07 Which model should I choose?
The model depends on whether you need standard length cutting, peak/valley positioning, punching, vision positioning or automatic unwinding. Send us the tube diameter, sample photos and required finished length, and we can recommend the suitable configuration.
08 Can the corrugated tube cutting machine be customized?
Yes. CUTOPIX can customize the feeding, cutting, positioning, punching and unwinding configuration according to the actual tube and production requirements.
Discuss Your Application

Tell Us What You Need to Cut

The fastest way to recommend a suitable machine is to understand your material and finished cutting requirement.

01Material name, width and thickness
02Required cutting length, shape or punching method
03Target output or production requirement
04Voltage and any custom automation requirement
Send Photos / Drawings on WhatsApp

For photos, drawings or sample details, you can also send them through WhatsApp after submitting the form.
