PVC Furniture Edge Banding Printing Punching & Cutting Machine HX-200DK-C2

Automatic feeding, punching and cut-to-length solution for PVC edge banding and narrow plastic strips, with customizable hole positions, end profiles and finished dimensions.

Application-specific cutting configuration
Material testing before order confirmation
OEM / non-standard customization support
Remote technical and after-sales support
PVC Furniture Edge Banding Printing Punching & Cutting Machine HX-200DK-C2
Model
HX-200DK-C2
Cutting Method
Cold
Model
HX-200DK-C2
Cutting Length
1-9999mm
Cutting Width
1-95mm
Thickness
0.01-4mm(others can custom)
Engineering Overview

What Is This Machine Designed to Do?

Understand the machine logic, suitable materials, process capability and application scope before comparing configurations.

Material Matched Application Reviewed Configuration Confirmed
Before Configuration Review
✓ Material type
✓ Width & thickness
✓ Required cut size
✓ Target output

The HX-200DK-C2 is designed for automatic processing of PVC edge banding and compatible narrow plastic strip materials that require cutting and punching in one production cycle.

Continuous strip material is automatically fed into the machine, processed to the required length and punched according to the specified hole size and position. Customized tooling can also be developed for rounded ends or other compatible finished profiles.

This machine is particularly suitable for repetitive production of furniture accessories and custom plastic strip components where consistent length, hole position and finished shape are required.

Because PVC edge banding and plastic strips vary in width, thickness, hardness and surface construction, we recommend confirming the machine configuration using the customer's actual material, drawing or finished sample.

Why This Configuration

Match the Machine to the Production Requirement.

A suitable cutting machine should match the actual material, production workflow and required finished result — not just a catalog specification.

01

Material Fit

Review material type, width, thickness, structure and cutting behavior before confirming the machine configuration.

Material
02

Process Fit

Confirm that feeding, positioning, cutting and collection match the required production sequence and handling method.

Workflow
03

Output Fit

Evaluate required dimensions, cut quality and target output so the final setup matches the intended production result.

Result
Process Flow

How the Machine Works

A clear process view helps engineering and purchasing teams evaluate whether the machine fits their production flow.

01

Load Material

Install the roll, strip, sheet or workpiece according to the machine configuration.

02

Set Parameters

Set length, quantity, speed or processing parameters through the control system.

03

Automatic Processing

The feeding and cutting / punching sequence runs according to the programmed settings.

04

Collect & Inspect

Finished parts are collected and checked for size, shape and cutting quality.

Machine Video

See PVC Strip Punching & Cutting in One Process

Watch how continuous PVC edge banding or narrow plastic strip material is automatically fed, positioned, punched and cut into individual finished components. The video can help buyers evaluate feeding stability, punching position, finished length, end shape and actual processing results before selecting a machine configuration.

Feeding & handling
Cutting action
Finished result
Operating sequence
Technical Specifications

Core Machine Parameters

Use these values for a quick engineering review. Final speed and configuration should be confirmed with the actual material and required finished result.

Model
HX-200DK-C2
Cutting Length
1-9999mm
Cutting Width
1-95mm
Material Thickness
0.01-4mm(others can custom)
Cutting / Blade Type
Cold
Suitable Materials
PVC Edge Banding, Furniture Edge Banding Tape, PVC Edgebanding Strip, Plastic Edge Banding, Flexible PVC Strip, PVC Decorative Tape, Decorative Plastic Strip, Plastic Furniture Trim

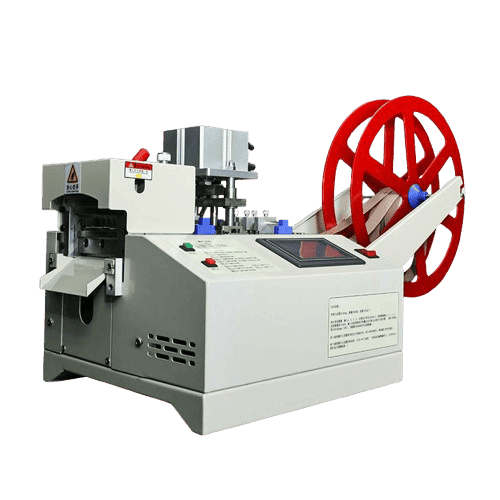

Technical reference image. Final configuration follows the confirmed application.
Confirm Before Ordering
Need a recommendation based on your width, thickness and target speed?
WhatsApp Us
Engineering Details

From Continuous PVC Strip to Finished Component

The machine integrates material feeding, dimensional control, punching and cutting into a repeatable production sequence. Tooling and processing settings are configured around the geometry of the required finished component.

Detail 01

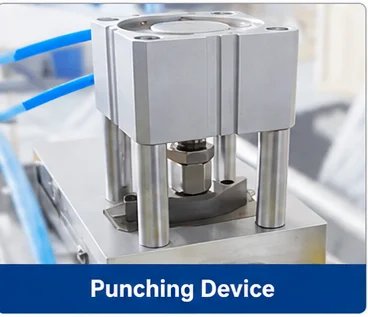

Cutting Unit / Blade Area

Core processing area for cutting, punching or die-cutting according to the machine type.

Detail 02

Automatic Feeding System

Supports stable material movement and repeatable positioning during continuous production.

Detail 03

Control & Parameter Setting

Operators can set length, quantity, speed and related process parameters from the control interface.

Customization Options

Build the Machine Around Your PVC Component

PVC strip products can differ significantly in geometry even when the raw material looks similar. We therefore configure the punching and cutting system according to the finished component dimensions rather than only the raw material width.

Typical Customization Requests
Cutting Method Working Width Feeding Sensors Voltage Rewinding
?
Not sure which option fits your production?

Send material photos, width, thickness and your target cutting result for configuration review.

◇
Application
Matched
⚙
Engineering
Reviewed
✓
Configuration
Confirmed
Available Customization
01

Cutting Method

Hot / cold / blade / punching / die-cutting according to application.

02

Working Width & Length

Standard range or project-specific dimension review.

03

Feeding System

Standard feeding, unwinding and tension-control options.

04

Punching / Tooling

Custom dies, hole patterns, cutting shapes and fixtures.

05

Control Logic

PLC / servo / sensor-linked process sequence customization.

06

Electrical Standard

110V / 220V / 380V and 50/60Hz by destination.

07

OEM Branding

Machine label, logo and project-specific identification.

08

Collection / Rewinding

Collection, rewinding or downstream handling options.

Testing Before Shipment

Verify Your PVC Component Before Shipment

For customized punching projects, actual-material testing is recommended because material thickness, hardness and product geometry can affect the final processing result. We can test the customer's material and confirm the finished component before shipment.

01

Customer Sample

Receive material samples, drawings or detailed process requirements.

02

Machine Setup

Adjust feeding, cutting, tooling and control parameters for the application.

03

Material Test

Run the actual material and inspect cutting quality, dimensions and stability.

04

Video Confirmation

Share running videos and finished samples for buyer confirmation when required.

05

Packing & Shipment

Complete final inspection, secure packing and shipment preparation.

✓ Cutting Quality
✓ Size & Accuracy
✓ Continuous Running
✓ Electrical / Safety Check
Material Capability

Compatible Materials & Cutting Samples

Review suitable materials and real cutting samples in one place. Final compatibility should be confirmed according to material thickness, structure and required cutting quality.

PVC Edge Banding Furniture Edge Banding Tape PVC Edgebanding Strip Plastic Edge Banding Flexible PVC Strip PVC Decorative Tape Decorative Plastic Strip Plastic Furniture Trim
Not sure whether your material can be processed?

Send the material name, width, thickness and a photo or sample for application review.

WhatsApp About Your Material
Cutting Performance

PVC Edge Banding Punching & Cutting Results

Continuous PVC edge banding or compatible plastic strip material can be converted into finished components with preset lengths, punched mounting holes and customized end profiles. Typical finished parts include straight plastic strips, rounded-end components and narrow strips with one or more holes according to the required product design. Hole diameter, hole-to-edge distance, finished length and end geometry should be confirmed according to the customer's drawing or physical sample.

PVC Furniture Edge Banding Printing Punching & Cutting Machine HX-200DK-C2 input material before cutting
Step 01

Input Material

PVC Edge Banding, Furniture Edge Banding Tape, PVC Edgebanding Strip, Plastic Edge Banding, Flexible PVC Strip, PVC Decorative Tape, Decorative Plastic Strip, Plastic Furniture Trim and similar flexible materials are prepared for stable feeding and cutting.

PVC Furniture Edge Banding Printing Punching & Cutting Machine HX-200DK-C2 automatic cutting process
Step 02

Automatic Processing

Material is automatically fed, positioned and cut according to the programmed length, quantity and process settings.

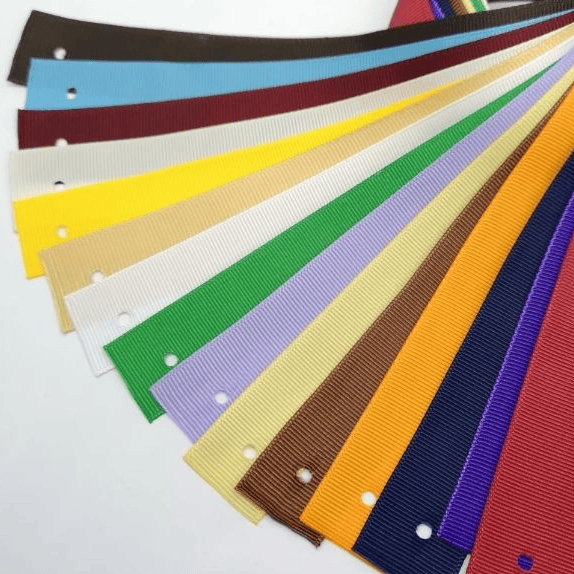

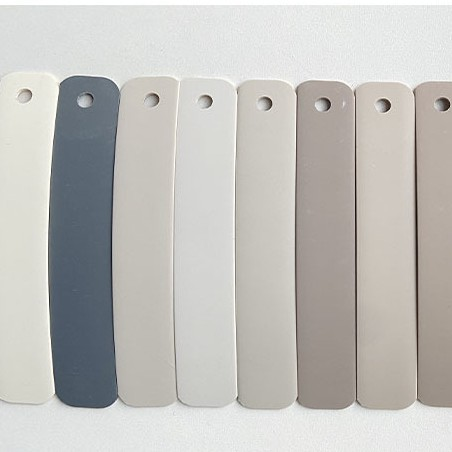

PVC Furniture Edge Banding Printing Punching & Cutting Machine HX-200DK-C2 finished cutting result
Step 03

Finished Result

Finished pieces are reviewed for dimensions, cutting quality, edge condition and production consistency.

Clean Cutting Result
Repeatable Dimensions
Automatic Feeding
Finished-Part Inspection
Manufacturing Partner

Why Industrial Buyers Work With CUTOPIX

Manufacturing resources, assembly, electrical integration and quality control — practical proof behind every machine project.

Factory

Manufacturing & Engineering Capability

CUTOPIX specializes in the development and manufacturing of automatic cutting and punching equipment for flexible materials. Our production capabilities cover machine assembly, electrical integration, customized tooling, testing and quality inspection. Each machine can be configured according to the customer's material, cutting size, production process and automation requirements.

Industry Presence

Global Exhibitions & Industry Experience

We participate in industry exhibitions to present our cutting solutions and communicate directly with customers from different markets. These face-to-face exchanges help us better understand real production requirements and continuously improve our machines for different materials, applications and industries.

Customer Feedback

Trusted by Customers Worldwide

Our machines are used by customers in different industries and markets around the world. Customer feedback, repeat orders and real production results help demonstrate the reliability of our equipment and service. We value long-term cooperation and continue to provide technical support after delivery.

FAQ

Questions Industrial Buyers Usually Ask

Practical answers about materials, cutting capability, configuration and purchasing this machine.

01 What machine can automatically cut and punch PVC edge banding?
An automatic PVC edge banding punching and cutting machine can feed continuous strip material, punch the required holes and cut it into individual components in one production process. The tooling is normally configured according to the required hole position and finished part geometry.
02 Can PVC edge banding be cut to length and punched in one process?
Yes. For compatible materials and product designs, automatic feeding, fixed-length cutting and hole punching can be integrated into one production cycle, reducing separate manual cutting and punching operations.
03 Can the hole diameter and hole position be customized?
Yes. Punching dies can be developed according to the required hole diameter, quantity and position. A dimensional drawing or finished sample is recommended for tooling confirmation.
04 What machine can make rounded ends on PVC or plastic strips?
A customized punching and cutting machine can use dedicated tooling to produce compatible rounded-end profiles while cutting continuous plastic strip material into individual parts.
05 Can the machine make a mounting hole near the end of each plastic strip?
Yes. The hole position can be designed according to the required distance from the end or edge of the finished component. Accurate product dimensions should be provided before the punching die is manufactured.
06 What materials can a PVC strip punching and cutting machine process?
The machine is primarily configured for compatible PVC edge banding and narrow plastic strip materials. Because hardness, thickness, flexibility and surface construction vary, the actual material should be evaluated before the final machine and tooling configuration is confirmed.
07 Can one machine produce different lengths of PVC edge banding components?
Finished cutting length can be programmed for different production requirements within the machine's applicable processing range. If different products also require different hole positions or end profiles, the tooling requirements should be evaluated separately.
08 Do I need a different punching die for different hole sizes or end shapes?
Different product geometries may require different tooling. If the hole diameter, hole arrangement or finished profile changes significantly, a dedicated or replaceable die may be required.
09 What information should I provide when ordering a custom PVC edge banding punching machine?
Provide the material type, strip width, thickness, finished length, hole diameter, hole position, hole quantity, end profile and expected production requirement. A physical material sample and dimensional drawing are strongly recommended.
Discuss Your Application

Tell Us What You Need to Cut

The fastest way to recommend a suitable machine is to understand your material and finished cutting requirement.

01 Material name, width and thickness
02 Required cutting length, shape or punching method
03 Target output or production requirement
04 Voltage and any custom automation requirement
Send Photos / Drawings on WhatsApp
