Orbital Tube Saw Pipe Cutting Machine for Stainless & Carbon Steel HX4

Precision Orbital Tube Saw for Clean, Square Cutting of Stainless Steel & Carbon Steel Pipes

Application-specific cutting configuration
Material testing before order confirmation
OEM / non-standard customization support
Remote technical and after-sales support
Discuss Your Material on WhatsApp
Orbital Tube Saw Pipe Cutting Machine for Stainless & Carbon Steel HX4
Model
HX4
Cutting Method
Hot
Model
HX4
Cutting Length
1-9999mm
Cutting Width
1-95mm
Thickness
0.01-4mm(others can custom)
Engineering Overview

What Is This Machine Designed to Do?

Understand the machine logic, suitable materials, process capability and application scope before comparing configurations.

Material Matched Application Reviewed Configuration Confirmed
Before Configuration Review
✓ Material type
✓ Width & thickness
✓ Required cut size
✓ Target output

The Orbital Tube Saw Pipe Cutting Machine is designed for precision cutting of stainless steel, carbon steel and other compatible metal tubes where clean, square and controlled pipe ends are required.

During cutting, the saw blade rotates around the fixed tube rather than forcing the entire pipe through a conventional saw. This orbital cutting method is especially suitable for applications where pipe-end quality, squareness and controlled deformation are important.

Typical applications include stainless steel process piping, sanitary tubing, industrial pipe fabrication, mechanical equipment, chemical piping and other metal tube processing applications.

Tube material, outside diameter, wall thickness and required pipe-end quality should be confirmed before machine selection. Actual-material testing is recommended for special tube specifications.

Why This Configuration

Match the Machine to the Production Requirement.

A suitable cutting machine should match the actual material, production workflow and required finished result — not just a catalog specification.

01

Material Fit

Review material type, width, thickness, structure and cutting behavior before confirming the machine configuration.

Material
02

Process Fit

Confirm that feeding, positioning, cutting and collection match the required production sequence and handling method.

Workflow
03

Output Fit

Evaluate required dimensions, cut quality and target output so the final setup matches the intended production result.

Result
Process Flow

How the Machine Works

A clear process view helps engineering and purchasing teams evaluate whether the machine fits their production flow.

01

Load Material

Install the roll, strip, sheet or workpiece according to the machine configuration.

02

Set Parameters

Set length, quantity, speed or processing parameters through the control system.

03

Automatic Processing

The feeding and cutting / punching sequence runs according to the programmed settings.

04

Collect & Inspect

Finished parts are collected and checked for size, shape and cutting quality.

Technical Specifications

Core Machine Parameters

Use these values for a quick engineering review. Final speed and configuration should be confirmed with the actual material and required finished result.

Model
HX4
Cutting Length
1-9999mm
Cutting Width
1-95mm
Material Thickness
0.01-4mm(others can custom)
Cutting / Blade Type
Hot
Suitable Materials
Stainless Steel Tube, Carbon Steel Pipe, Sanitary Tube, 304/316L Stainless Steel, Titanium Alloy, Inconel, Copper Pipe, Aluminum Pipe, Thin-wall Metal Tube
Confirm Before Ordering
Need a recommendation based on your width, thickness and target speed?
WhatsApp Us
Customization Options

Configure the Machine Around Your Production.

Instead of forcing your material into a fixed catalog model, CUTOPIX can review the key process conditions and adapt the configuration where required.

Typical Customization Requests
Cutting Method Working Width Feeding Sensors Voltage Rewinding
?
Not sure which option fits your production?

Send material photos, width, thickness and your target cutting result for configuration review.

WhatsApp About Customization
◇
Application
Matched
⚙
Engineering
Reviewed
✓
Configuration
Confirmed
Available Customization
01

Cutting Method

Hot / cold / blade / punching / die-cutting according to application.

02

Working Width & Length

Standard range or project-specific dimension review.

03

Feeding System

Standard feeding, unwinding and tension-control options.

04

Punching / Tooling

Custom dies, hole patterns, cutting shapes and fixtures.

05

Control Logic

PLC / servo / sensor-linked process sequence customization.

06

Electrical Standard

110V / 220V / 380V and 50/60Hz by destination.

07

OEM Branding

Machine label, logo and project-specific identification.

08

Collection / Rewinding

Collection, rewinding or downstream handling options.

Testing Before Shipment

From Customer Sample to Shipment Confirmation

For customized machinery, verification should happen before the machine leaves the factory. The process below helps reduce uncertainty for overseas buyers.

01

Customer Sample

Receive material samples, drawings or detailed process requirements.

02

Machine Setup

Adjust feeding, cutting, tooling and control parameters for the application.

03

Material Test

Run the actual material and inspect cutting quality, dimensions and stability.

04

Video Confirmation

Share running videos and finished samples for buyer confirmation when required.

05

Packing & Shipment

Complete final inspection, secure packing and shipment preparation.

✓ Cutting Quality
✓ Size & Accuracy
✓ Continuous Running
✓ Electrical / Safety Check
Material Capability

Compatible Materials & Cutting Samples

Review suitable materials and real cutting samples in one place. Final compatibility should be confirmed according to material thickness, structure and required cutting quality.

Stainless Steel Tube Carbon Steel Pipe Sanitary Tube 304/316L Stainless Steel Titanium Alloy Inconel Copper Pipe Aluminum Pipe Thin-wall Metal Tube
Not sure whether your material can be processed?

Send the material name, width, thickness and a photo or sample for application review.

WhatsApp About Your Material
Cutting Performance

Precision Orbital Tube Saw Cutting Results

Orbital saw cutting produces controlled pipe ends by rotating the cutting blade around the stationary tube. Typical finished parts include cut-to-length stainless steel tubes, carbon steel pipes, sanitary tubes and industrial metal pipe sections prepared for subsequent welding, fitting or assembly. Finished cutting quality depends on tube material, outside diameter, wall thickness, blade selection and required tolerance. For projects with specific squareness, burr or dimensional requirements, actual-material testing is recommended.

Orbital Tube Saw Pipe Cutting Machine for Stainless & Carbon Steel HX4 input material before cutting
Step 01

Input Material

Stainless Steel Tube, Carbon Steel Pipe, Sanitary Tube, 304/316L Stainless Steel, Titanium Alloy, Inconel, Copper Pipe, Aluminum Pipe, Thin-wall Metal Tube and similar flexible materials are prepared for stable feeding and cutting.

Orbital Tube Saw Pipe Cutting Machine for Stainless & Carbon Steel HX4 automatic cutting process
Step 02

Automatic Processing

Material is automatically fed, positioned and cut according to the programmed length, quantity and process settings.

Orbital Tube Saw Pipe Cutting Machine for Stainless & Carbon Steel HX4 finished cutting result
Step 03

Finished Result

Finished pieces are reviewed for dimensions, cutting quality, edge condition and production consistency.

Clean Cutting Result
Repeatable Dimensions
Automatic Feeding
Finished-Part Inspection
Application Scenarios

Where Orbital Tube Saw Cutting Is Used

Orbital tube saw cutting is suitable for industries that require clean, square and repeatable cutting of stainless steel, carbon steel and other compatible metal pipes before welding, assembly or further fabrication.

Manufacturing Partner

Why Industrial Buyers Work With CUTOPIX

Manufacturing resources, assembly, electrical integration and quality control — practical proof behind every machine project.

Factory

Manufacturing & Engineering Capability

CUTOPIX specializes in the development and manufacturing of automatic cutting and punching equipment for flexible materials. Our production capabilities cover machine assembly, electrical integration, customized tooling, testing and quality inspection. Each machine can be configured according to the customer's material, cutting size, production process and automation requirements.

Industry Presence

Global Exhibitions & Industry Experience

We participate in industry exhibitions to present our cutting solutions and communicate directly with customers from different markets. These face-to-face exchanges help us better understand real production requirements and continuously improve our machines for different materials, applications and industries.

Customer Feedback

Trusted by Customers Worldwide

Our machines are used by customers in different industries and markets around the world. Customer feedback, repeat orders and real production results help demonstrate the reliability of our equipment and service. We value long-term cooperation and continue to provide technical support after delivery.

FAQ

Questions Industrial Buyers Usually Ask

Practical answers about materials, cutting capability, configuration and purchasing this machine.

01 What is an orbital tube saw?
An orbital tube saw is a pipe cutting machine in which the cutting head travels around a positioned tube to perform circumferential cutting. It is commonly used where clean and square pipe ends are required.
02 What materials can an orbital tube saw cut?
Compatible stainless steel, carbon steel and other metal tubes can be processed. The suitable configuration depends on the material grade, outside diameter and wall thickness.
03 Can an orbital tube saw cut stainless steel pipe?
Yes. Stainless steel tubing is a typical application for orbital saw cutting, particularly when controlled pipe-end quality is important for subsequent welding or assembly.
04 Can this machine cut carbon steel pipe?
Compatible carbon steel pipes can be processed according to their outside diameter, wall thickness and required cutting result.
05 What is the advantage of orbital pipe cutting?
Because the cutting tool travels around the tube, orbital cutting can provide controlled circumferential cutting while helping maintain pipe-end squareness and reduce excessive tube deformation.
06 Is an orbital tube saw suitable for thin-wall stainless steel tubing?
Compatible thin-wall stainless steel tubes can be evaluated. Tube diameter, wall thickness and required pipe-end quality should be confirmed before machine selection.
07 Can orbital cutting prepare pipes for welding?
Yes. One important application is preparing metal tube sections for subsequent welding, fitting and assembly. The required pipe-end condition should be confirmed before selecting the cutting configuration.
08 Does orbital saw cutting produce burrs?
Orbital saw cutting is designed to achieve controlled and clean pipe ends with reduced burr formation. The actual result depends on tube material, wall thickness, blade selection and cutting parameters.

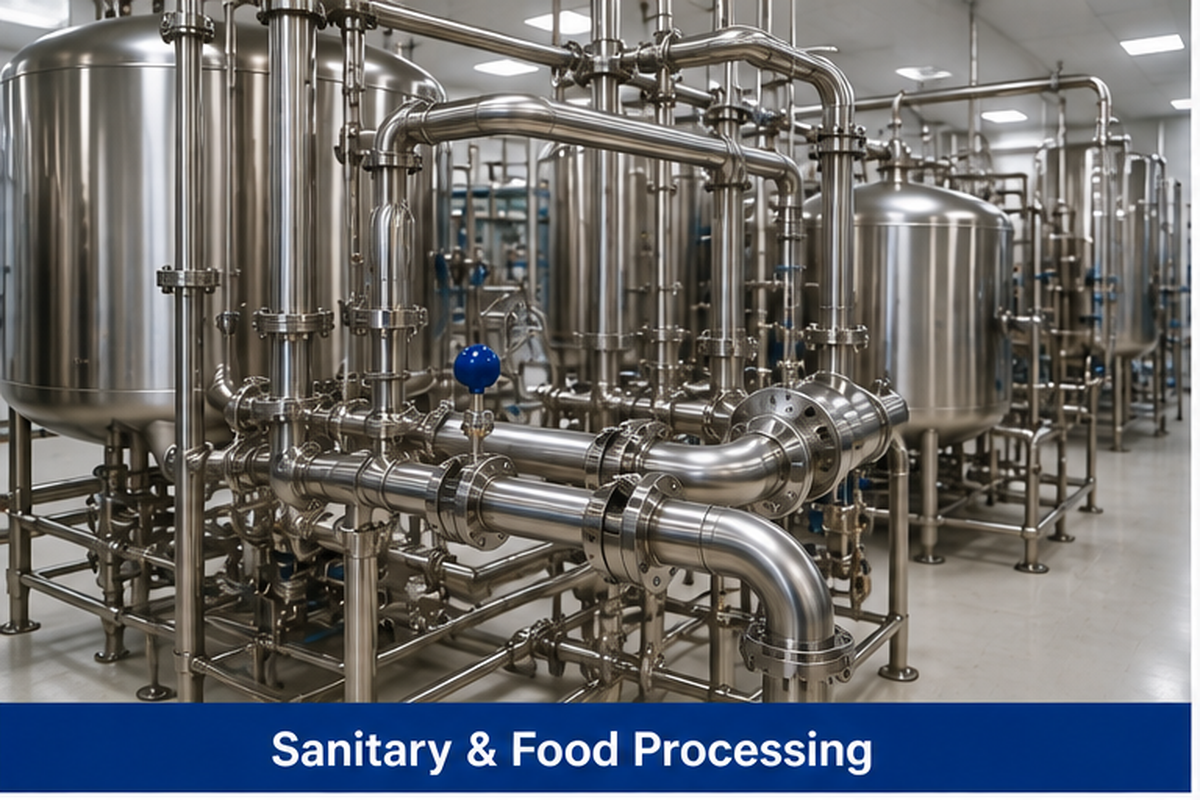

09 Can it cut sanitary and process piping?
Yes. Compatible stainless steel sanitary and process tubes can be cut for food processing, pharmaceutical, chemical and other piping applications.
10 Can it cut both thin-wall and thick-wall pipes?
Different wall thicknesses can be evaluated within the machine's applicable range. The actual tube specification should be provided before the cutting configuration is confirmed.
Discuss Your Application

Tell Us What You Need to Cut

The fastest way to recommend a suitable machine is to understand your material and finished cutting requirement.

01Material name, width and thickness
02Required cutting length, shape or punching method
03Target output or production requirement
04Voltage and any custom automation requirement
Send Photos / Drawings on WhatsApp

For photos, drawings or sample details, you can also send them through WhatsApp after submitting the form.
