Automatic Webbing Angle Cutting Machine with Hot Knife vs Ultrasonic Cutting Machine

Choosing the right cutting technology is one of the most important decisions when manufacturing synthetic webbing products. I have worked with customers from industries such as automotive, safety equipment, luggage, outdoor products, medical textiles, and apparel. One question always comes up:

Should I choose a hot knife cutting machine or an ultrasonic cutting machine?

The answer depends on the material, the product requirements, and the desired edge quality. Both technologies seal synthetic fibers while cutting, but they work in completely different ways.

In this article, I will compare these two technologies in detail and explain which one provides better edge sealing for synthetic webbing.

Whether I use a webbing tape cutting machine, hot and cold cutting machine, high-speed trademark cutting machine, automatic punching cutting machine, round shape cutting machine, rotary bevel cutting machine, or another automatic cutting solution, understanding the advantages of each sealing technology helps improve product quality and production efficiency.

---

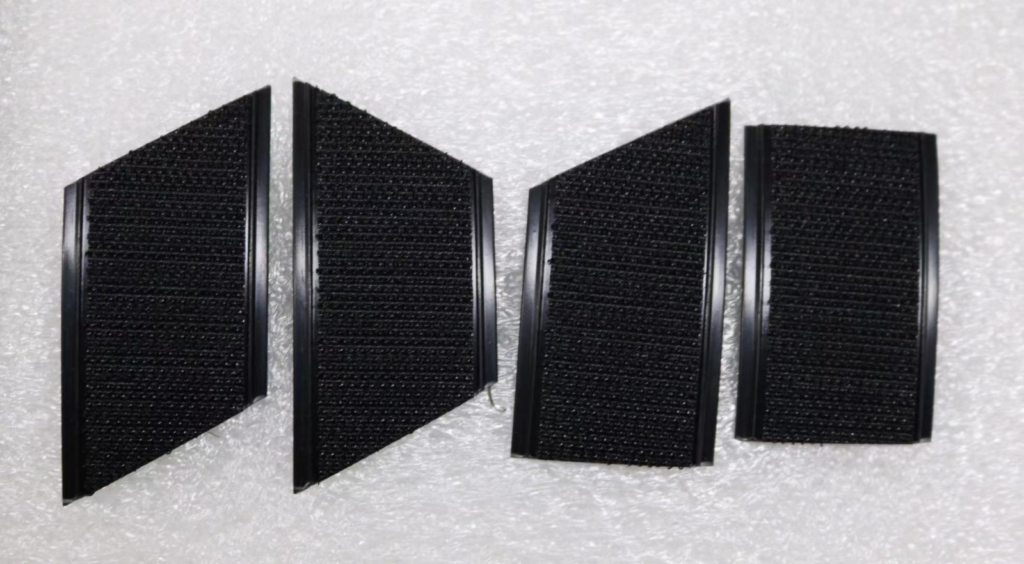

Which Technology Provides Better Edge Sealing for Synthetic Webbing?

There is no single winner for every application.

A hot knife provides extremely strong edge sealing and excellent anti-fray performance for heavy-duty synthetic materials.¹

An ultrasonic cutting machine creates softer, cleaner, and more attractive edges without visible burn marks, making it ideal for premium textile products.

The best technology depends on the application.

---

Hot Knife vs Ultrasonic Cutting at a Glance

Feature	Hot Knife Cutting	Ultrasonic Cutting
Cutting Method	Heated blade	High-frequency vibration
Edge Sealing	Excellent	Excellent
Edge Appearance	Slightly hardened	Soft and smooth
Burn Marks	Possible	Very rare
Heavy Webbing	Excellent	Good
Elastic Materials	Good	Excellent
Safety Belts	Excellent	Good
Clothing Labels	Fair	Excellent
Machine Cost	Lower	Higher
Maintenance	Simple	More specialized

---

1. Hot Knife Uses Direct Heat to Melt and Seal the Edge

A hot knife cutting machine uses a heated blade that reaches temperatures of approximately 430°C to 450°C.

When the blade cuts synthetic webbing, it melts the fibers while separating the material. The melted edge immediately cools and forms a sealed finish.

This process prevents fraying and creates a very durable edge.

Materials Suitable for Hot Knife Cutting

• Polyester webbing
• Nylon webbing
• Polypropylene (PP)
• Polyethylene (PE)
• Safety belts
• Cargo straps
• Lifting slings

Because the fibers are completely sealed, the finished products maintain excellent durability even under heavy mechanical stress.²

Advantages

• Strong sealing
• Excellent anti-fray performance
• High production speed
• Simple machine structure
• Lower equipment cost

For heavy industrial products, hot knife technology remains one of the most trusted solutions.

---

2. Ultrasonic Cutting Uses High-Frequency Vibration Instead of High Heat

Unlike hot knife cutting, ultrasonic cutting does not rely on a heated blade.

Instead, the machine generates high-frequency vibrations.

These microscopic vibrations create localized heat only where the material is being cut.

The fibers melt together without exposing the entire surface to high temperatures.

Benefits of Ultrasonic Cutting

• Minimal surface burning
• No visible scorch marks
• Little or no discoloration
• Soft sealed edge
• Excellent cosmetic appearance

This makes ultrasonic technology especially suitable for premium products.

Typical Applications

Product	Recommended Technology
Elastic tape	Ultrasonic
Clothing labels	Ultrasonic
Medical textiles	Ultrasonic
Decorative ribbon	Ultrasonic
Fashion accessories	Ultrasonic

Because only the cutting area receives energy, surrounding fibers remain almost unchanged.

---

3. Hot Knife Edges Are Strong but May Feel Slightly Hard

One characteristic of hot knife cutting is edge hardness.

The melted material cools into a dense sealed edge.

This provides outstanding durability but can sometimes produce:

• Slight hardening
• Small color changes
• Mild yellowing
• Darkened edges on some materials

For industrial applications, these effects are rarely a problem.

Products like:

• Cargo straps
• Ratchet belts
• Safety harnesses
• Lifting slings

prioritize durability over appearance.

Industrial Advantages

Feature	Benefit
Hard sealed edge	Better wear resistance
Strong fusion	Longer service life
High temperature sealing	Excellent anti-fray

For heavy-duty synthetic webbings, this sealing strength is often more important than aesthetics.

---

4. Ultrasonic Cutting Produces Soft, Clean, and Premium Edges

If appearance is the highest priority, ultrasonic cutting usually wins.

The sealed edge feels soft and natural.

There is almost no visible melting.

This improves:

• Product appearance
• Customer comfort
• Brand image
• Sewing quality

Luxury textile manufacturers often choose ultrasonic technology because customers can immediately feel the difference.

Ideal Products

• Lingerie
• Sportswear
• Medical straps
• Baby products
• Fashion accessories
• Elastic waistbands

For premium brands, clean edge appearance often justifies the higher equipment investment.

---

5. Hot Knife Machines Excel in Heavy Safety Webbing

Heavy industrial webbing places enormous stress on the cut edge.

Examples include:

• Seat belts
• Safety harnesses
• Cargo straps
• Lifting slings
• PPE equipment

These products require maximum sealing strength.

Hot knife angle cutting machines have been widely used in these industries for many years because they provide consistent sealing under demanding conditions.³

Heavy-Duty Applications

Industry	Preferred Technology
Automotive	Hot Knife
Cargo Transport	Hot Knife
Industrial Safety	Hot Knife
Lifting Equipment	Hot Knife
Outdoor Equipment	Hot Knife

When durability matters most, hot knife cutting remains the standard solution.

---

6. Ultrasonic Machines Shine in Elastic and Narrow Webbing

Elastic materials behave differently during cutting.

Excessive heat can damage elasticity.

Ultrasonic machines minimize this risk.

They are commonly used for:

• Elastic bands
• Bra straps
• Medical elastic
• Narrow ribbons
• Clothing labels

The edges remain soft without becoming brittle.

This improves comfort for wearable products.

For manufacturers serving the apparel industry, ultrasonic cutting often provides the highest-quality finish.

---

7. Hot Knife Angle Cutters Offer Greater Flexibility for Angle Cutting

Many industrial customers require multiple cutting angles.

Examples include:

• 30°
• 45°
• 60°
• 90°
• Alternating angles
• Multi-shape cutting

Automatic hot knife angle cutting machines often include programmable angle systems.

This makes them highly versatile.

Typical Functions

• Fixed angle cutting
• Alternating angles
• Straight cuts
• V-cuts
• Multi-shape cuts
• Automatic length control

These features allow one machine to process many different products with minimal setup time.

---

8. Ultrasonic Machines Can Combine Cutting, Punching, and Marking

Modern ultrasonic equipment often performs several operations simultaneously.⁴

Some systems combine:

• Cutting
• Hole punching
• Line marking
• Waste removal

All of these operations occur during a single production cycle.

Because ultrasonic energy produces very little surface burning, the finished products maintain a clean appearance even after multiple operations.

This greatly improves productivity for complex textile products.

---

9. Hybrid Machines Combine Hot Knife and Ultrasonic Technology

Some manufacturers now offer hybrid systems.

These machines combine:

• Hot knife cutting
• Ultrasonic sealing
• Punching
• Marking

Hybrid equipment attempts to provide:

• Strong sealing
• Better appearance
• Reduced discoloration
• Greater production flexibility

Although hybrid machines are more expensive, they provide excellent performance for manufacturers producing many different product types.

---

10. The Best Choice Depends on Your Product

There is no universal winner.

The correct technology depends on the material and the customer’s quality requirements.

Decision Guide

Product Type	Best Choice
Safety belt	Hot Knife
Cargo strap	Hot Knife
Nylon webbing	Hot Knife
Polyester webbing	Hot Knife
Elastic tape	Ultrasonic
Clothing labels	Ultrasonic
Medical textile	Ultrasonic
Decorative ribbon	Ultrasonic
Premium fashion products	Ultrasonic

If strength is the highest priority, I recommend a hot knife machine.

If appearance, comfort, and edge softness matter most, ultrasonic cutting is usually the better option.

---

Additional Factors to Consider

Besides edge quality, I also evaluate:

• Production speed
• Machine price
• Maintenance cost
• Operator training
• Material compatibility
• Energy consumption
• Future production expansion

A machine should fit both today’s production and tomorrow’s business growth.

---

Frequently Asked Questions

Which machine creates the strongest sealed edge?

Hot knife cutting usually creates the strongest sealed edge for heavy synthetic webbing such as nylon, polyester, PP, and PE.

Which machine produces the best appearance?

Ultrasonic cutting produces cleaner, softer edges with little or no discoloration, making it ideal for premium textile products.

Is ultrasonic cutting faster than hot knife cutting?

Both technologies offer high production speeds.⁵ The actual output depends more on the machine design, feeding system, automation level, and material type than on the sealing technology itself.

Can both machines cut angled webbings?

Yes. Modern automatic webbing angle cutting machines are available with both hot knife and ultrasonic cutting systems, depending on the application.

Which technology costs less?

Hot knife machines generally have a lower purchase price and simpler maintenance.⁶ Ultrasonic systems require more advanced components and a higher initial investment.

---

Conclusion

Both hot knife and ultrasonic cutting technologies provide excellent edge sealing for synthetic webbing, but they serve different manufacturing needs.

I recommend a hot knife automatic webbing angle cutting machine when producing heavy-duty products such as safety belts, cargo straps, lifting slings, and industrial webbings. The strong thermal seal delivers outstanding durability and reliable anti-fray performance.

For premium textile products, elastic tapes, clothing labels, and decorative webbings, I prefer an ultrasonic cutting machine because it creates softer edges with almost no discoloration or hardening.

Whether I operate a webbing tape cutting machine, hot and cold cutting machine, high-speed trademark cutting machine, automatic punching cutting machine, round shape cutting machine, rotary bevel cutting machine, different shapes cutting machine, computer tube cutting machine, wire cutting and stripping machine, metal pipe cutting and beveling machine, bubble wrap cutting machine, PVC edge banding cutting machine, or protective foam cutting machine, choosing the right cutting technology always leads to better product quality, lower waste, and higher customer satisfaction.

---
