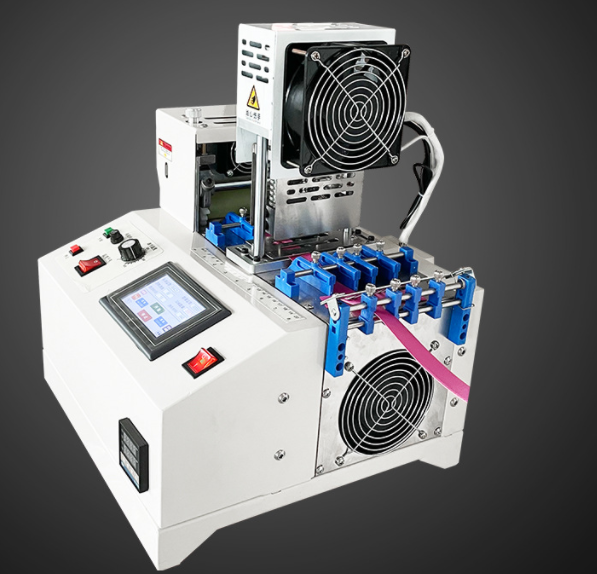

How to Calibrate an Automatic Webbing Angle Cutting Machine?

An automatic webbing angle cutting machine can only deliver consistent cutting quality if it is properly calibrated. Even a high-end industrial machine will gradually lose accuracy due to normal wear, blade replacement, material changes, or long production hours.¹

Regular calibration ensures that every webbing piece matches the programmed length and angle while maintaining clean edges and reliable feeding. It also reduces material waste, improves product consistency, and extends machine life.

In this guide, I will explain the correct calibration procedure, which machine components require adjustment, and how often cutting length and angle should be checked.

How Often Should Cutting Length and Angle Be Calibrated?

Cutting length and angle should be checked whenever a new material is introduced, after replacing the blade, after major maintenance, or whenever cutting accuracy begins to drift.² For normal industrial production, I recommend verifying calibration daily with a few test cuts and performing a complete calibration every 3–6 months, depending on production volume and machine usage.

Frequent verification prevents small errors from becoming costly quality problems.

Why Calibration Is So Important

Calibration is more than adjusting numbers on the control panel.

It ensures that:

• Programmed length equals actual length.
• Programmed angle matches the physical cut.
• Feeding remains accurate.
• Hot-knife temperature produces clean edges.
• Product quality stays consistent.

Without calibration, even a small error of a few tenths of a millimeter can accumulate over thousands of production cycles.

Step 1: Inspect the Blade Before Calibration

Always begin by checking the cutting blade.

A damaged or incorrectly installed blade makes accurate calibration impossible.

Inspect the following:

• Blade condition
• Blade tightness
• Blade alignment
• Blade wear
• Blade mounting position

If the blade is dull or chipped, replace it before continuing.

Trying to calibrate with a worn blade often wastes time because cutting quality will remain inconsistent.

Verify the Basic Cutting Angle

Before adjusting electronic settings, confirm that the blade is physically positioned close to the desired angle.

For example:

• 0°
• 30°
• 45°

The mechanical angle should already match the programmed value as closely as possible.

This provides a solid starting point for fine adjustment.

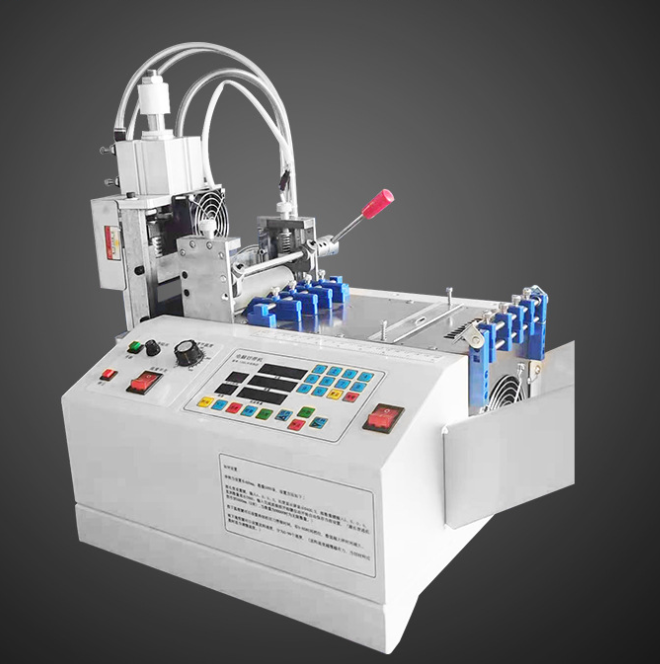

Dive Deeper: Fine-Tune the Mechanical Angle System

Many automatic webbing angle cutting machines allow small mechanical adjustments.

If the measured angle differs from the programmed angle, the blade holder usually needs fine adjustment.

Typical adjustment points include:

• Locking nuts
• Mechanical stops
• Knife holder position
• Guide notch position

Mechanical Calibration Procedure

Always make very small adjustments.

Large adjustments make it difficult to identify the correct setting.

After each adjustment, cut several sample pieces instead of relying on only one measurement.

Consistent results are much more important than one perfect sample.

Match Blade Gap to the Material

Different webbing materials require different blade clearances.³

The blade gap should match:

• Material thickness
• Material hardness
• Blade type

If the gap is too small:

• Blade wear increases.
• Cutting force rises.

If the gap is too large:

• Material may deform.
• Edge quality decreases.
• Angle accuracy suffers.

Proper blade clearance improves both cutting quality and blade life.

Calibrate Cutting Length

After the blade has been adjusted, verify cutting length.

A simple method is:

1. Program a known length.
2. Cut several samples.
3. Measure each piece.
4. Compare the results.
5. Adjust feed settings if necessary.

Many operators use:

• 100 mm
• 500 mm
• 1000 mm

These lengths make measurement easier.

Digital calipers generally provide more accurate results than ordinary rulers.⁴

Dive Deeper: Verify Both Start and End Angles

Many industrial webbing ribbon cutting machines produce more than one cutting angle.

For example:

• Straight to 45°
• 30° to 45°
• Double-angle cuts

Both the starting angle and ending angle should be measured.

Angle Verification Checklist

Never measure only one sample.

Instead, produce at least five to ten pieces and compare the results.

If all pieces remain consistent, the calibration is successful.

If the angles gradually change during production, inspect the blade holder, guide rails, or feeding system.

Stable repeatability is more important than a single accurate cut.

Optimize Hot-Knife Temperature

For hot and cold cutting machines, temperature also affects cutting quality.

The objective is simple:

• Fully seal the edge.
• Avoid burning.
• Prevent discoloration.
• Reduce blade sticking.

The correct temperature depends on:

• Nylon
• Polyester
• PP
• Material thickness

Run several test cuts while gradually adjusting temperature.

Select the lowest temperature that produces clean sealed edges.

This reduces heater wear and extends blade life.

Align Feed Rollers and Guides

Even perfectly calibrated blades cannot compensate for poor feeding.

Inspect:

• Feed rollers
• Guide rails
• Material guides
• Directing clips

The webbing should move through the machine in a perfectly straight line.

Any sideways movement changes the cutting angle.

Stable feeding is one of the biggest contributors to long-term cutting accuracy.

Dive Deeper: Use Machine Diagnostics During Calibration

Modern industrial automatic webbing angle cutting machines include intelligent diagnostic functions.

These systems monitor:

• Feeding sensors
• Material detection
• Encoder signals
• Motor status
• Alarm history

Diagnostic Functions

Before making mechanical adjustments, I always check the machine’s diagnostic information.

Sometimes the machine already indicates the source of the problem.

For example:

• Dirty sensor
• Missed feed
• Encoder error
• Motor overload

Correcting these issues first often restores cutting accuracy without additional calibration.⁵

Document Calibration Settings

After achieving satisfactory results, record the machine settings.

Typical records include:

• Cutting length
• Cutting angle
• Temperature
• Feed speed
• Blade type
• Material type

Keeping these records makes future machine setup much faster.⁶

It also improves consistency between different production batches.

Recommended Calibration Schedule

The correct calibration frequency depends on machine usage.

Regular verification prevents unexpected quality problems.

Best Practices for Accurate Calibration

To maintain stable cutting quality, I recommend:

• Replace worn blades promptly.
• Perform test cuts before mass production.
• Measure several samples.
• Clean sensors regularly.
• Keep feed rollers aligned.
• Verify hot-knife temperature.
• Record successful settings.
• Inspect machine diagnostics before making adjustments.
• Recalibrate after maintenance.
• Train operators on proper calibration procedures.

These simple habits greatly improve long-term machine performance.

Conclusion

Calibrating an automatic webbing angle cutting machine involves much more than adjusting the cutting angle. Accurate calibration requires verifying blade installation, fine-tuning the mechanical angle system, checking feed length, matching blade clearance to the material, optimizing hot-knife temperature, aligning feed rollers, and confirming sensor performance.

For most factories, a few daily test cuts are sufficient to verify cutting accuracy, while a complete calibration should be performed after blade replacement, major maintenance, material changes, or every 3–6 months during normal production. By following a structured calibration routine and documenting successful settings, manufacturers can maintain precise cutting length, consistent angle accuracy, lower scrap rates, and reliable long-term production performance.
